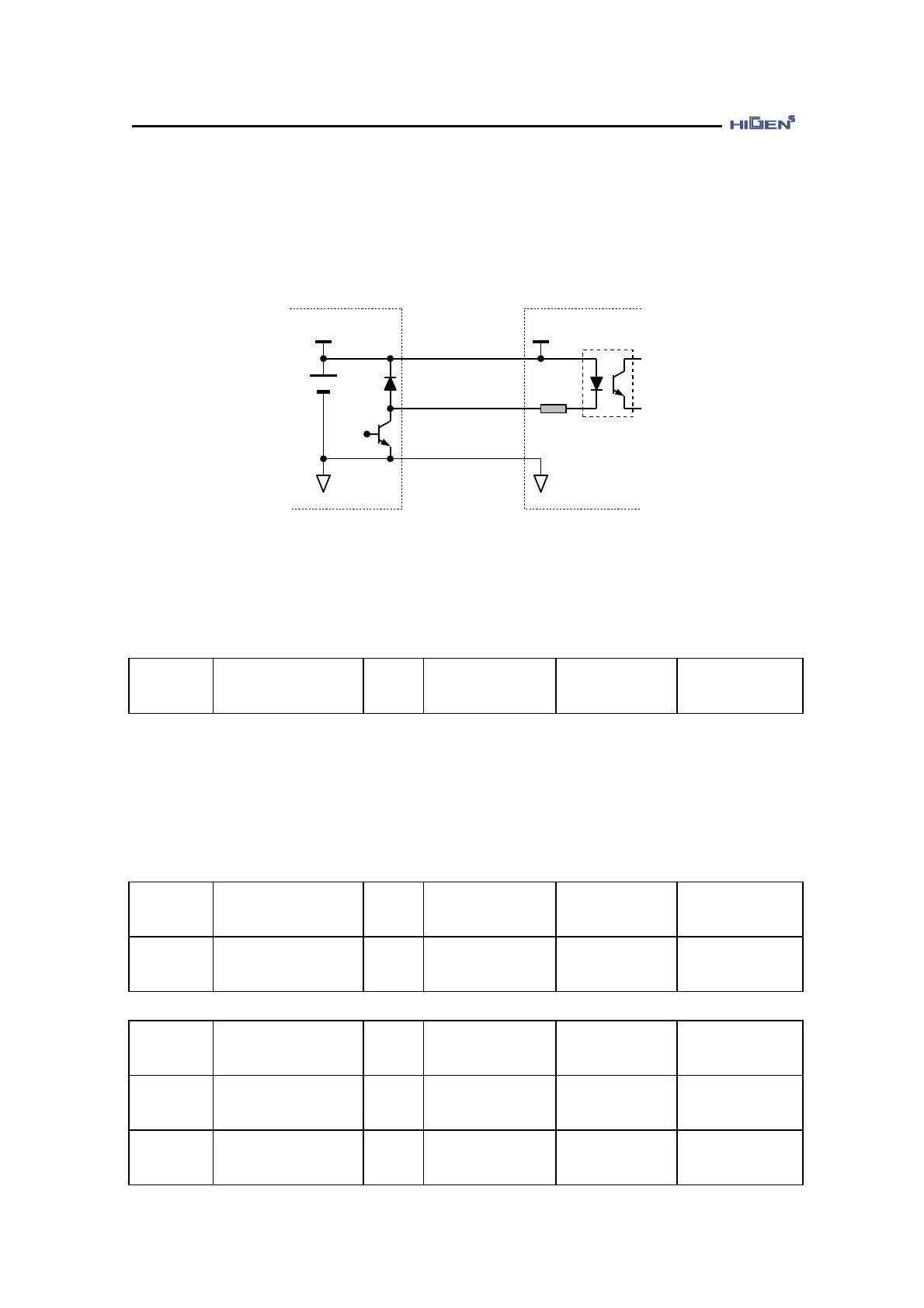

Higen FDA7002EX User Manual

3. Parameter setting
3-38
When using the input contact as a PLC or a photo coupler, connect it with the servo drive as
follows. At this time, use an external power supply of +24 [V], 50 [mA] or higher.
+24V
(CN1_49)
(CN1_24, 25)
FDA7000Controller
24VGND
3.3
+24V
24VGND
(CN1_18,43,17,42,16,
41,15,40,14,39,13,38)
3.9. Output contact point function setting[P08-]
P08-01*
CN1_23
Digital OUTPUT 1
Unit
-
Setting range
25~30
Manufactured
default
0
Speed/Torque/
Position control
In the P08-01 menu, you can set the individual pin function (0~18) or set the pin (25~30) by
control mode, But in P08-02~P08-10 menu, you can only set the individual pin function (0~18).
Enter the “25~30” value in the P08-01 menu to use the pin setting by control mode, and the
menu of P08-01 ~ P08-10 will automatically be reset with the pin setting of the applicable mode.
For more details, please refer to the “[Output contact point function table]” in the next page.
P08-02*
CN1_48
Digital OUTPUT 2
Unit
-
Setting range
0~23
Manufactured
default
3
Speed/Torque/
Position control
P08-03*
CN1_22
Digital OUTPUT 3
Unit
-
Setting range
0 ~ 23
Manufactured
default
6
Speed/Torque/
Position control
In case of FDA7000 model, manufactured default P08-03 = 21 (STOP status).
P08-04*
CN1_47
Digital OUTPUT 4
Unit
-
Setting range
0 ~ 23
Manufactured
default
5
Speed/Torque/
Position control
P08-05*
CN1_21
Digital OUTPUT 5
Unit
-
Setting range
0 ~ 23
Manufactured
default
7
Speed/Torque/
Position control
P08-06*
CN1_46
Digital OUTPUT 6
Unit
-
Setting range
0 ~ 23
Manufactured
default
9
Speed/Torque/
Position control
