3. Parameter setting
3-44

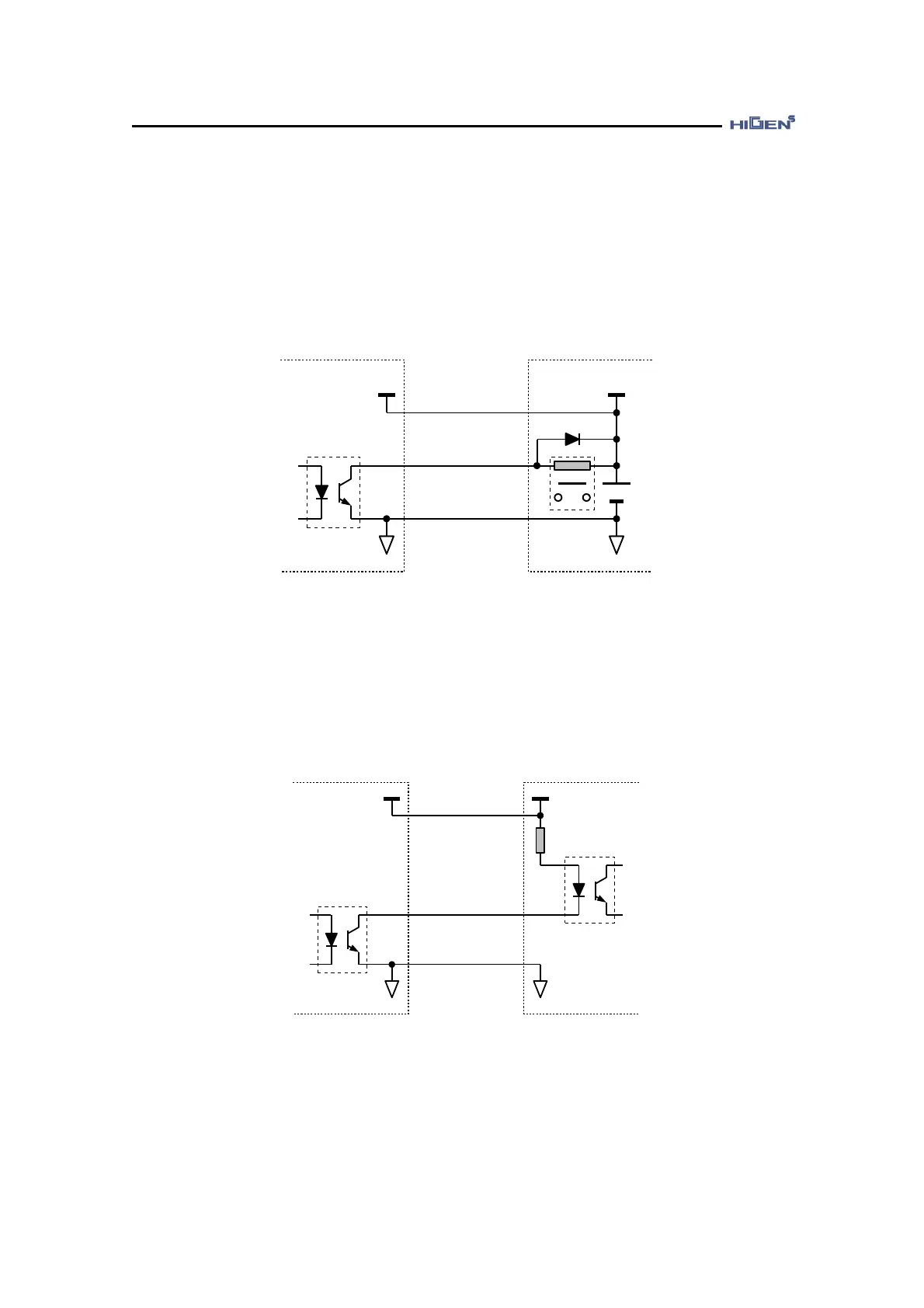

[Wiring method of output contact]
When output contact of FDA7000 series is combined with contact type device such as relay of
external controller, connect as follows.
(CN1_24, 25)
(CN1_23,48,22,47,
21,46,20,45,19,44)
FDA7000
24VGND
+24V
24VGND
+24V
(CN1_49)
Controller
When output contact of FDA7000 series is combined with open collector input like PLC of
external controller, connect as follows.
(CN1_24, 25)
FDA7000
24VGND
+24V
24VGND
+24V
(CN1_49)
Controller
(CN1_23,48,22,47,
21,46,20,45,19,44)
