HIKVISION DS-2CD2432F-I Installation Manual

Installation Manual of Network Camera
17

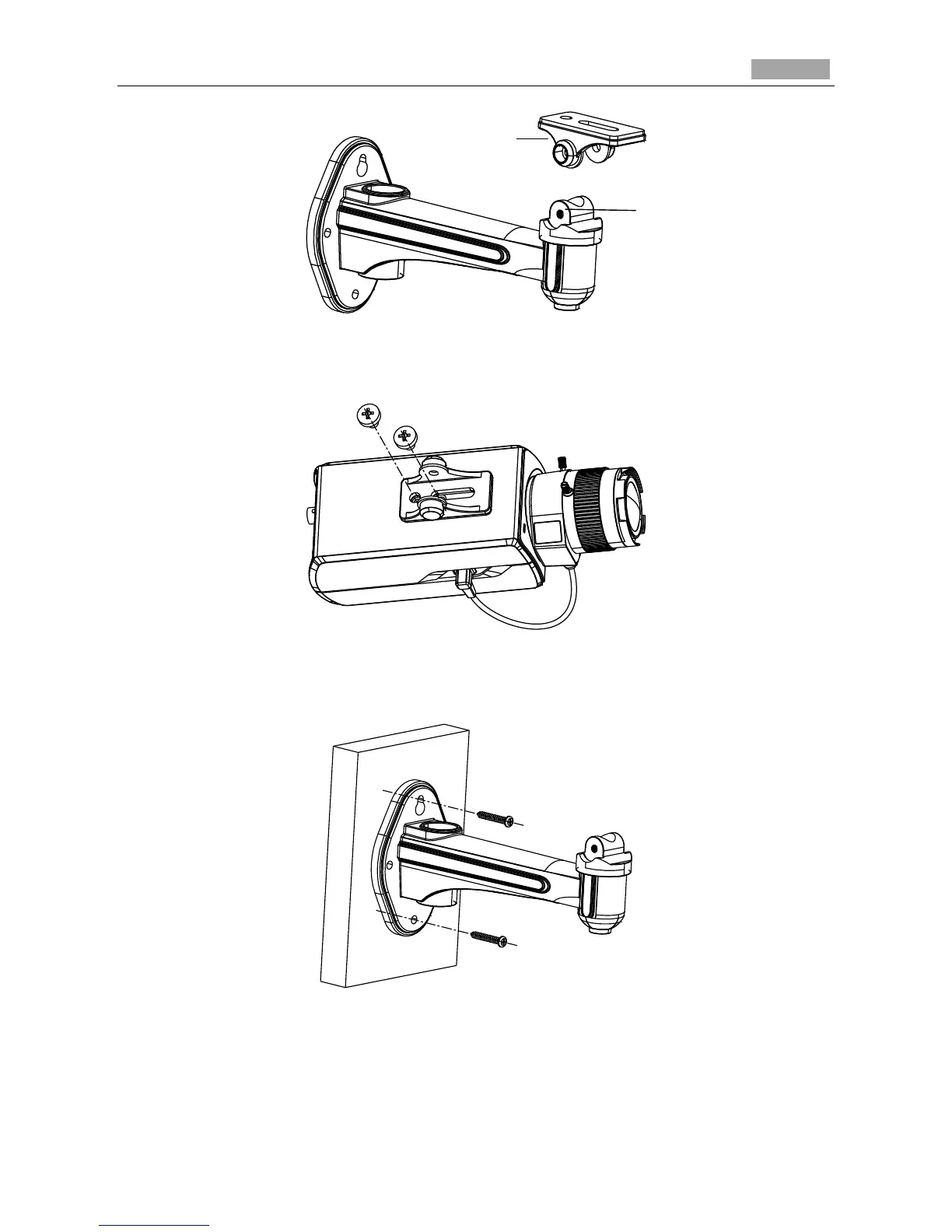

Figure 2-14 Remove the Tilt Adjust Table
4. Fit the removed tilt adjust table to the camera, and fix it with two screws.
Figure 2-15 Install the Tilt Adjust Table
5. Secure the wall mount to the wall with the supplied expansion screws.
Figure 2-16 Install the Wall Mount
6. Install the camera to the wall mount and tighten the two lock screws.
7. Adjust the surveillance angle.
Tilt Adjust Table
Lock Screw
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2432F-I Specifications

General

Brand	HIKVISION
Model	DS-2CD2432F-I
Category	Security Camera
Language	English
