HIKVISION DS-2CD2432F-I Installation Manual

Installation Manual of Network Camera
41

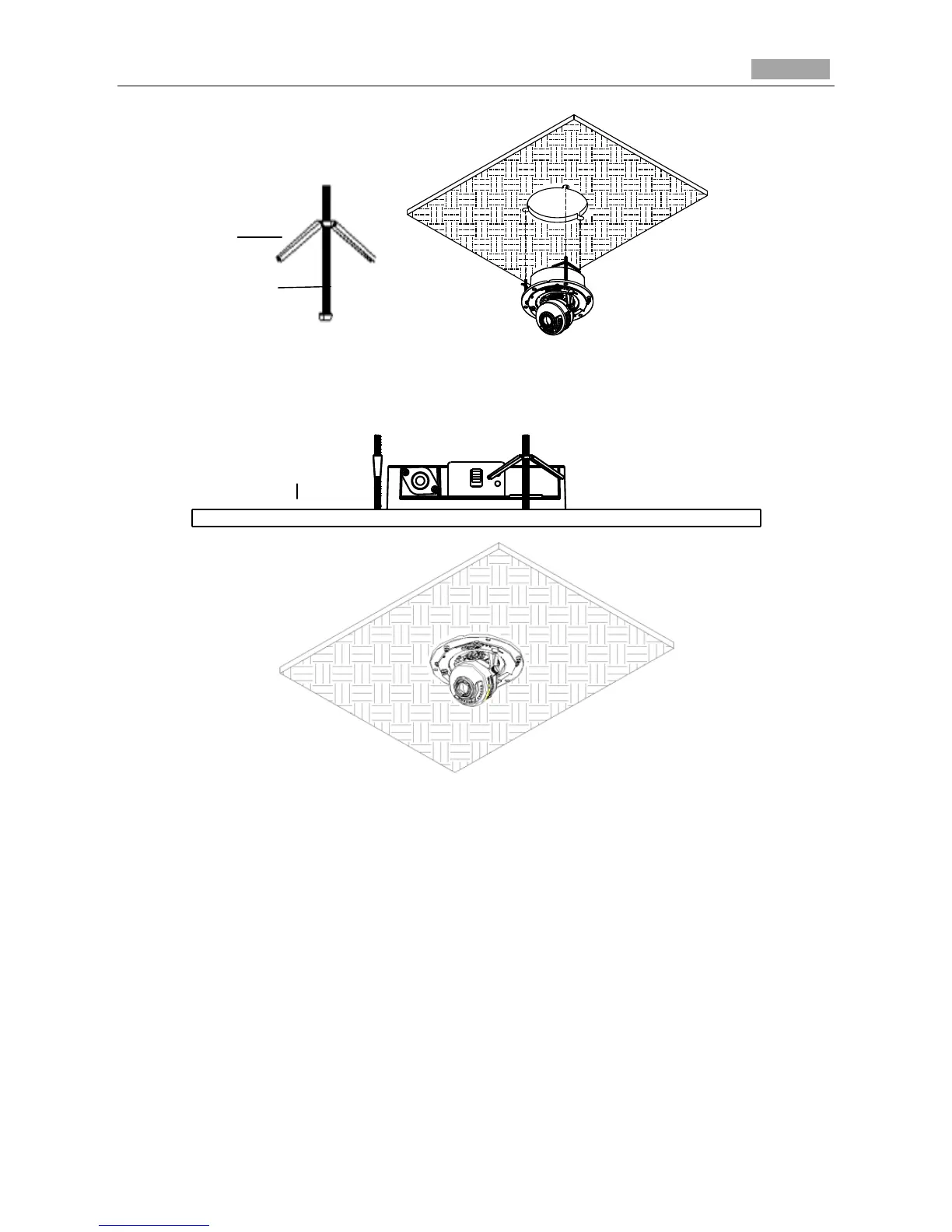

Figure 3-43 Dome Drive Installing
6. Fasten the toggle bolt and the toggle will automatically secure the dome drive to the ceiling.
Figure 3-44 Fasten Toggle Bolt
7. Connecting the network cable and power cable.
8. View the camera image over the network.
9. Loosen the lock screws to adjust the panning position and tilting position and rotate the lens to
get the desired surveillance angle.
10. Fasten the lock screws.
Toggle
Bolt
Ceiling
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie
