 In-ceiling Mounting:
Steps:
1. Drill the screw holes and the cable hole on the ceiling according to the supplied drill template.
Drill Template
1
1
1
A
Hole A: for the recessed part of
the camera body
Screw hole 1: for Toggle bolt
Code:190600840

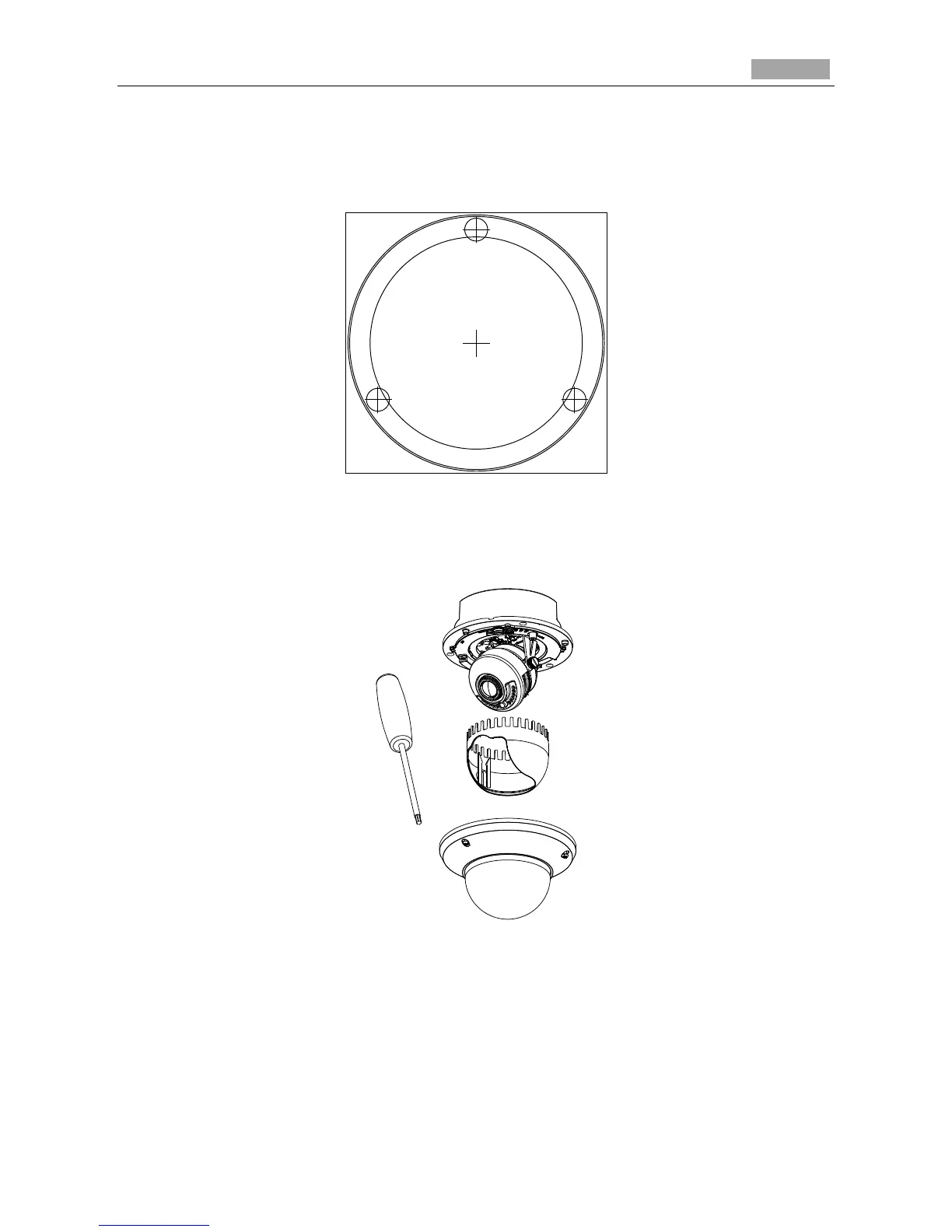

Figure 3-41 Drill Template
2. Loosen the set screws with the hex key (supplied) to remove the bubble; and remove the black
liner.
Figure 3-42 Disassembling
3. Rotate the toggle to remove it from the toggle bolt.
4. Insert the bolt into the toggle bolt hole on the dome drive and use the screw driver to rotate the
bolt slightly but not tightly.
5. Reinstall the toggle and push the dome drive to the cable hole on the ceiling with toggle bolts
aligned with the screw holes on the ceiling.
