2. Fix the dome drive to the adapter plate with the supplied PM4x8 screws.

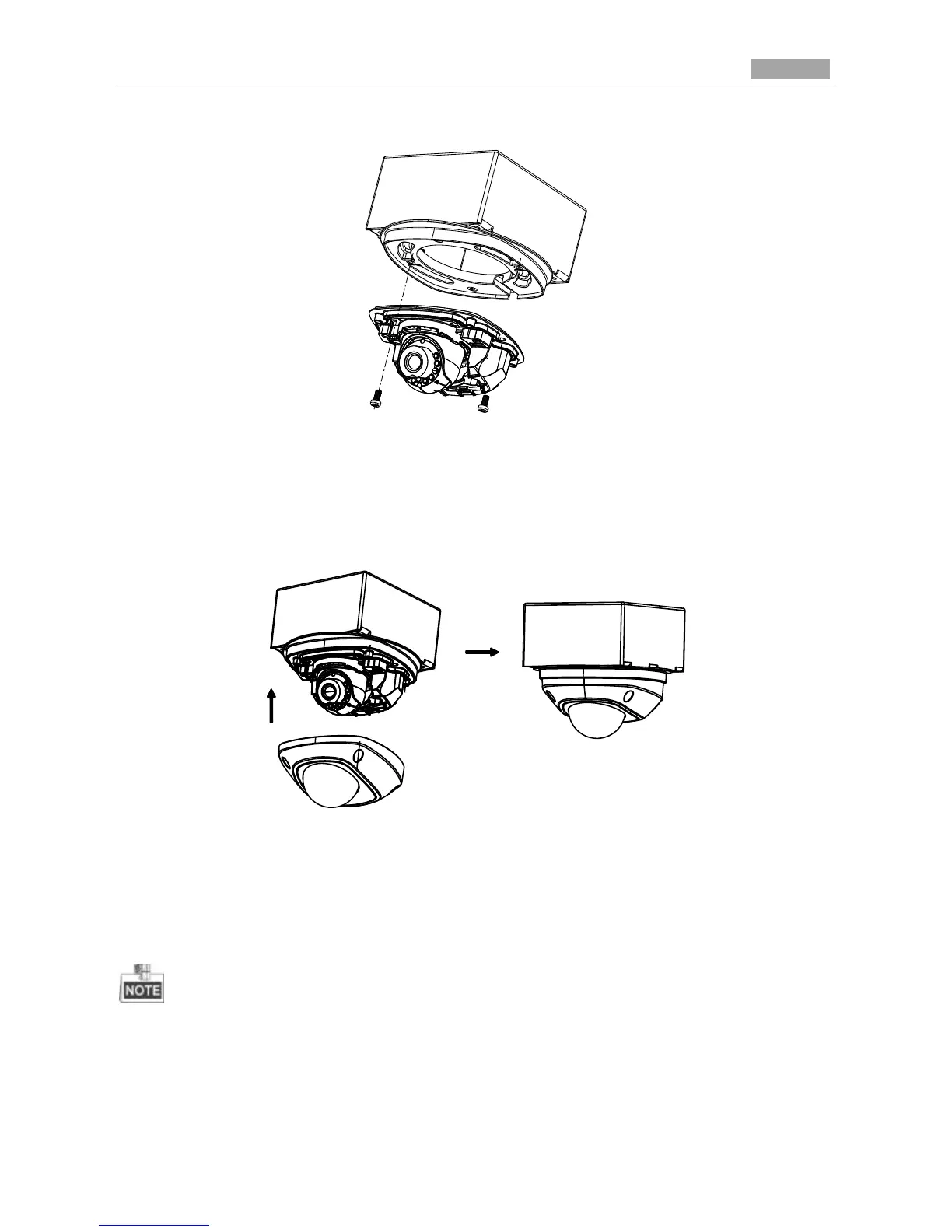

Figure 3-115 Fix the Dome Drive
3. Connect the power cable, network cable, and the alarm/audio cables.
4. Align the front cover to the dome drive and tighten the set screws on the front cover to complete
the installation.
Figure 3-116 Install the Front Cover
Ceiling Bracket Mounting
Steps:
1. Install the bracket to the ceiling with the supplied screws in the ceiling bracket package.
The matched ceiling bracket model is DS-1271ZJ-120, and you need to purchases it separately if
ceiling bracket mounting is adopted.
2. Fix the adapter plate to the ceiling bracket with the supplied PM4x8 screws.
