HIKVISION DS-2CD2432F-I

Installation Manual of Network Camera
79

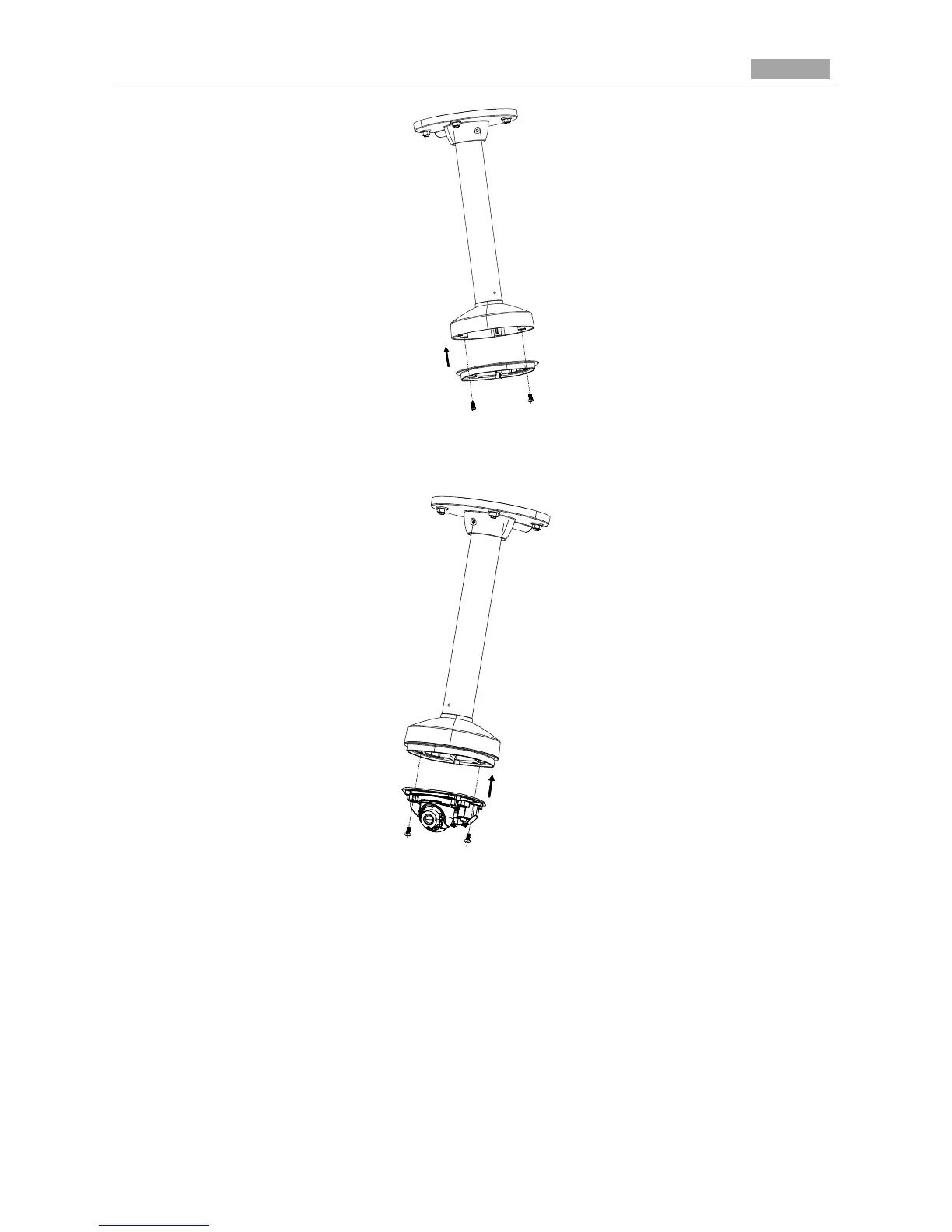

Figure 3-117 Fix the Adapter Plate
3. Install the dome drive to the adapter plate.
Figure 3-118 Fix the Dome Drive
4. Align the front cover to the dome drive and tighten the set screws on the front cover to complete
the installation.
