HIKVISION DS-7200-SH Series User Manual

User Manual of DS-7200-SH/SV&DS-7300-SH Series DVR
12

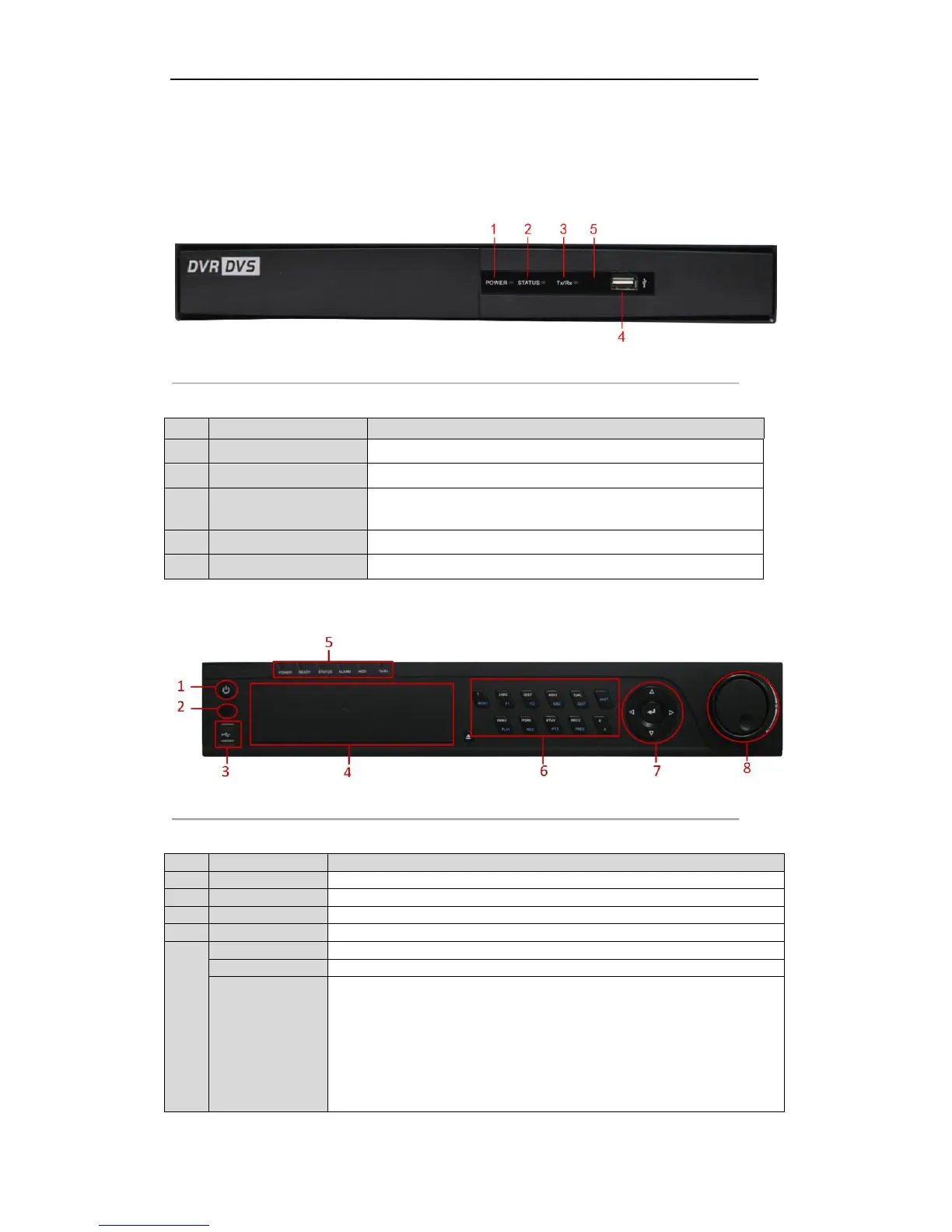

1.1 Front Panel
The front panel of DS-7200-SH/SV series DVR is shown in Figure 1.1:
Figure 1.1 Front Panel of DS-7200-SH/SV
Table 1.1 Description of Control Panel Buttons
No.
Name
Function Description
1
POWER
POWER indicator turns green when DVR is powered up.
2
STATUS
STATUS indicator lights in red when HDD is reading/writing.
3
Tx/Rx
Tx/Rx indictor blinks green when network connection is functioning
properly.
4
USB Interface
Connects USB mouse or USB flash memory devices.
5
IR Receiver
Receiver for IR remote.
The front panel of DS-7300-SH is shown below:
Figure 1.2 Front Panel of DS-7300-SH
Table 1.2 Description of Control Panel Buttons
No.
Name
Function Description
1
POWER ON/OFF
Power on/off switch.
2
IR Receiver
Receiver for IR remote control.
3
USB
Connect to USB mouse or USB flash memory devices.
4
DVD-ROM
Slot for DVD-ROM.
5
POWER
Power indicator lights in green when DVR is powered up.
READY
Ready indicator is normally green, indicating that the DVR is functioning properly.
STATUS
Indicator turns green when DVR is controlled by an IR remote control with the
address from 1~254;
Indicator turns red when the SHIFT button is used;
Indicator does not light when the DVR is controlled by a keyboard or by the IR
remote control with the address of 255;
Indicator turns green when the DVR is controlled by IR remote control (with the
address from 1~254) and keyboard at the same time , and the SHIFT button is not
used;

HIKVISION DS-7200-SH Series Specifications

General

Brand	HIKVISION
Model	DS-7200-SH Series
Category	DVR
Language	English
