HIKVISION DS-7200-SH Series User Manual

User Manual of DS-7200-SH/SV&DS-7300-SH Series DVR
30
Note: In the live view mode of the main output monitor, the menu operation is not available while Aux output
mode is enabled.
3.2.4 Main/Aux Output Switching
When the HDMI/VGA output is configured as the main output, you can perform the following operation to
switch to CVBS output as the main output.
Steps:
1. Use the mouse wheel to double-click on the HDMI/VGA output screen, and the following message box
pops up:

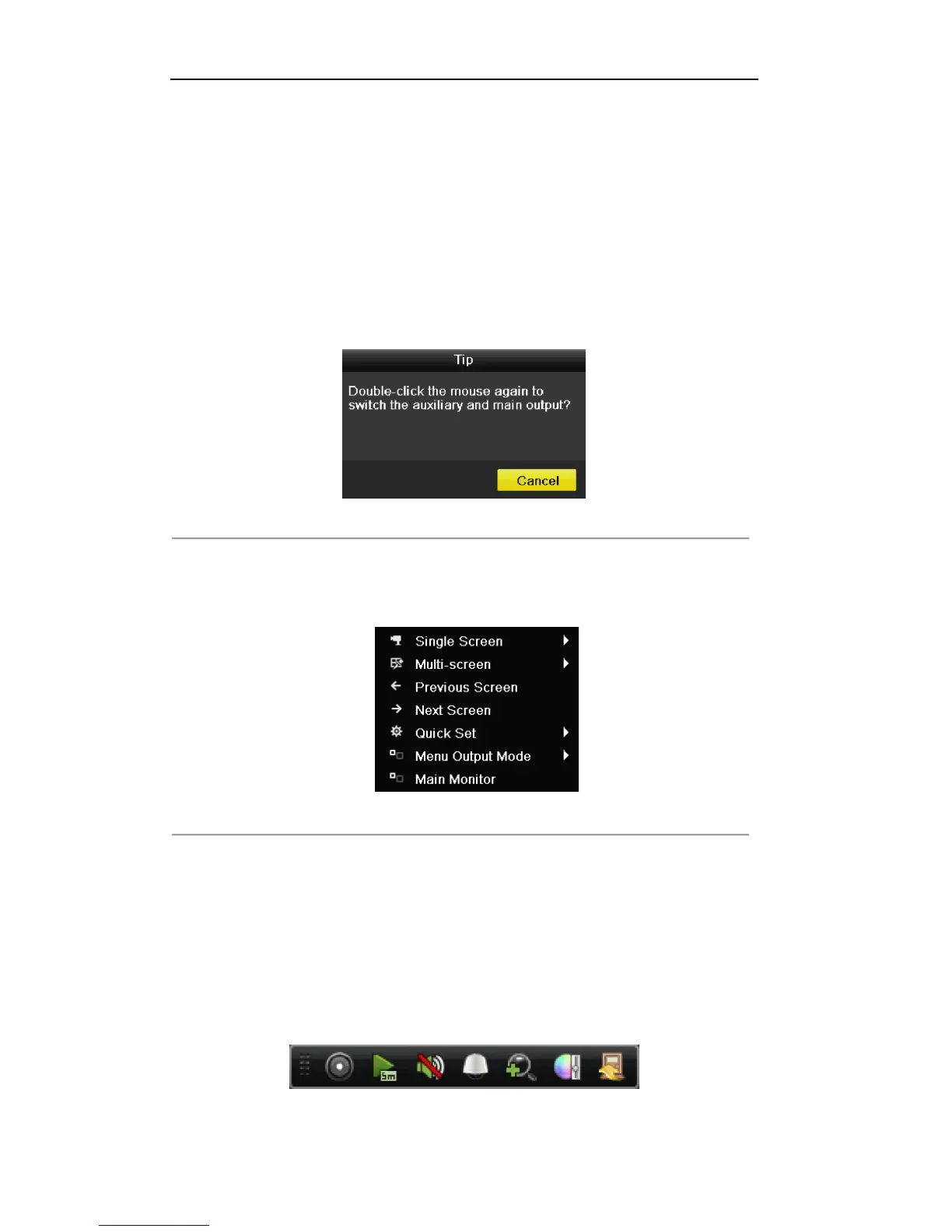

Figure 3.2 Switch Main and Aux Output
2. Use the mouse wheel to double-click on the screen again to switch to the Aux output, or click Cancel to
cancel the operation.
3. Select the Menu Output Mode to Main CVBS from the right-click menu on the CVBS output monitor.
Figure 3.3 Right-click Menu on CVBS Output Monitor
4. On the pop-up message box, click Yes to restart the device to enable the CVBS output as the main output.
Note: You can select the Menu Output Mode under Menu>Configuration>More Settings to Auto or
HDMI/VGA and then restart the device to switch the main output back to HDMI/VGA output.
3.2.5 Quick Setting Toolbar in Live View Mode
On the screen of each channel, there is a quick setting toolbar which shows when you right-click mouse on the
camera.
Figure 3.4 Quick Settings Toolbar
