User Manual of DS-7200-SH/SV&DS-7300-SH Series DVR
132
3. Select the backup device from the dropdown list of Device Name, as shown in Figure 9.30.
Note: Click the Refresh button if the connected local backup device cannot be displayed. When it fails
to detect the backup device, please check whether it is compatible with the device. You can format the
backup device if the format is incorrect.

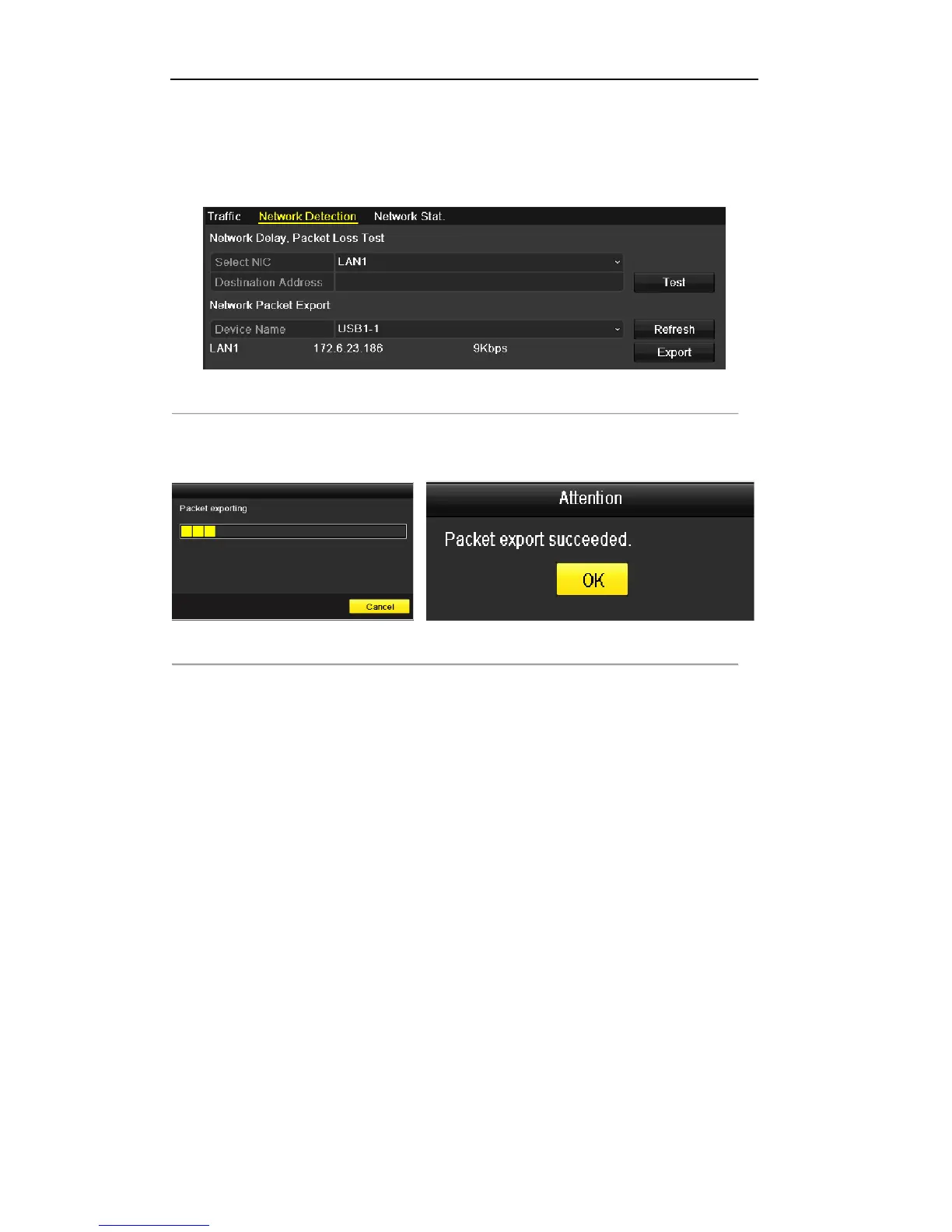

Figure 9.31 Export Network Packet
4. Click the Export button to start exporting.
5. After the exporting is complete, click OK to finish the packet export.
Figure 9.32 Packet Export Attention
Note: Up to 1M data can be exported each time.
9.4.3 Checking Network Status
Purpose:
You can also check the network status and quick set the network parameters in this interface.
Steps:
Click Status on the right bottom of the page.
