User Manual of
DS
-7200-SH/SV&DS-7300-
SH
Series DVR
156
12.1.5 Viewing HD
D Information
S
teps:
1.
Enter th
e Sy
stem Information interface.
Menu > Maintenance
>
System Info
2.
Click the
HDD
tab to enter the HDD Information menu to view the HDD status,
free space
, property, etc.

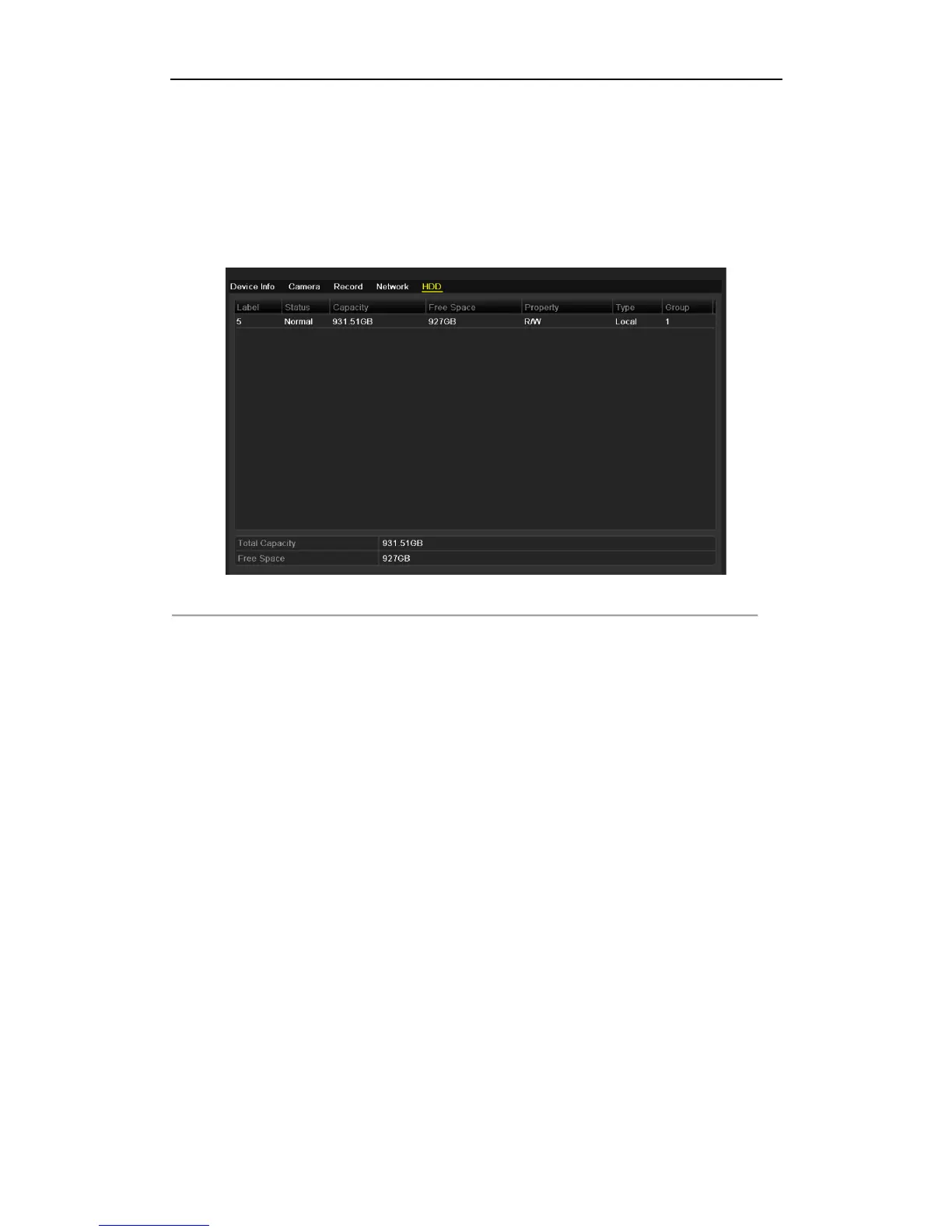

Figure 12.5 HDD Information Interface
156
158
