User Manual of DS-7200/7300/8100 Series DVR
139

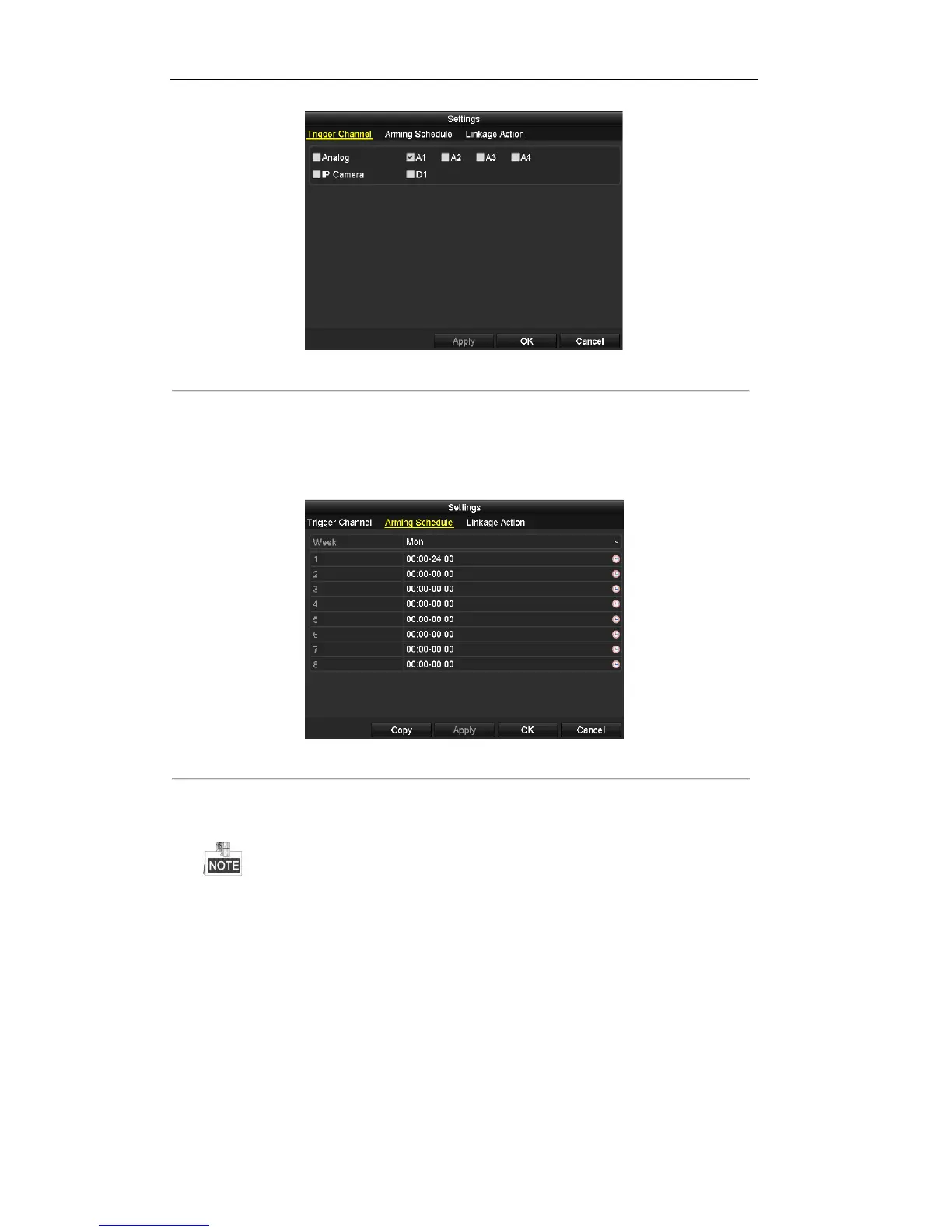

Figure 8. 17 Set Triggering Channel of VCA Alarm
1) Select Trigger Channel tab and select one or more channels which will start to record/capture or
become full-screen monitoring when a VCA alarm is triggered, and click Apply to save the
settings.
2) Select Arming Schedule tab to set the arming schedule of handling actions.
Figure 8. 18 Set Arming Schedule of VCA Alarm
Choose one day of a week, and up to 8 time periods can be set within each day. Click Apply to
save the settings.
Time periods shall not be repeated or overlapped.
Repeat the above steps to set up arming schedule of other days of a week. You can also use Copy
button to copy an arming schedule to other days.
3) Select Linkage Action tab to set up alarm response actions of the alarm input (please refer to
Chapter 8.7 Setting Alarm Response Actions).
4) Click the OK button to complete the VCA alarm settings of the channel.
6. Configure the region and other settings for the selected VCA detection.
Task1: Configure the Line Crossing Detection.
1) Select the virtual line from the drop-down list. Up to 4 lines are selectable.
2) Select the direction to A<->B, A->B or A<-B.
