HIKVISION DS-7200 User Manual

User Manual of DS-7200/7300/8100 Series DVR
31
3. Click Next button on the Wizard window to enter the Login window, as shown in Figure 2.3.
1) Enter the admin password. By default, the password is 12345.
2) To change the admin password, check the New Admin Password checkbox. Enter the new
password and confirm the password in the given fields.
You are highly recommended to change the initial password right after the first login to avoid safety
problem.

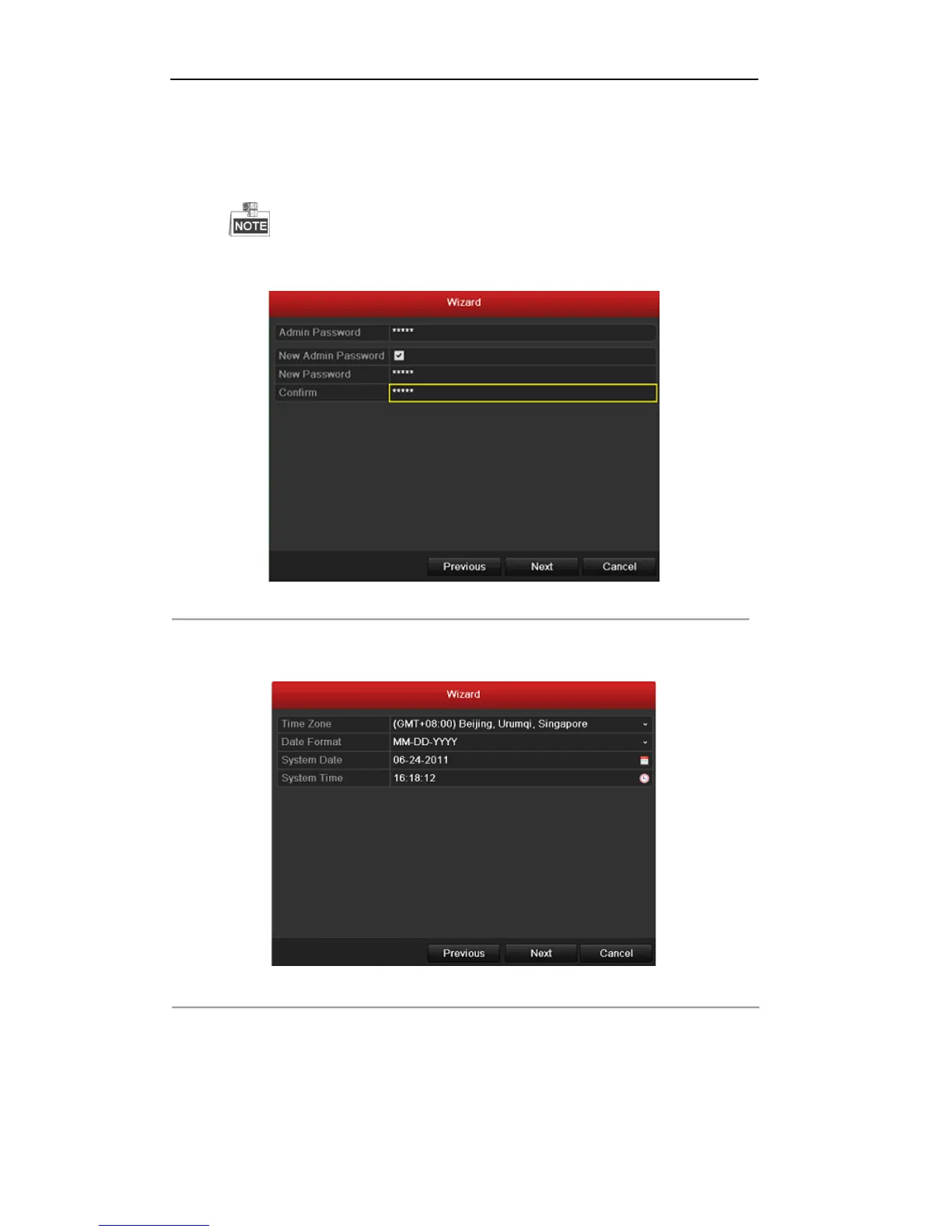

Figure 2. 3 Login Window
4. Click the Next button to enter the Date and Time settings window, as shown in Figure 2.4.
Set the time zone, date format, system date and system time.
Figure 2. 4 Date and Time Settings
5. Click Next button which takes you back to the Network Setup Wizard window, as shown in Figure 2.5.
Set the network parameters, including the NIC type, IPv4 address, IPv4 subnet mask, default gateway,
etc. You can enable the DHCP to automatically obtain an IP address and other network settings from
that server.

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
