User Manual of DS-7200/7300/8100 Series DVR
33

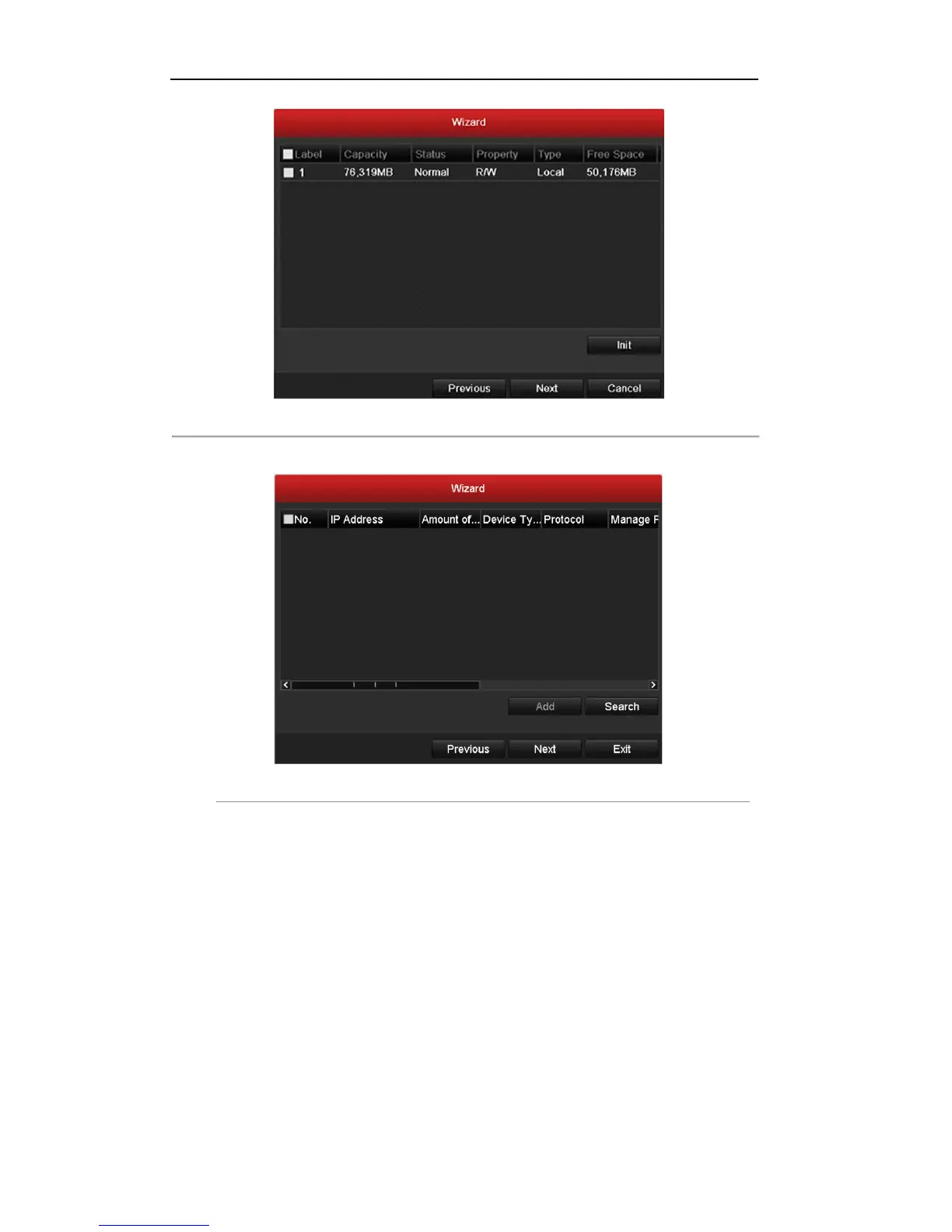

Figure 2. 7 HDD Management
9. Click Next to enter the IP Camera Management window (only supported by HDVR series).
Figure 2. 8 IP Camera Management
10. Click Search to search IP Camera. Click Add to add IP Camera (only supported by HDVR series).
11. After finishing IP Camera settings, click Next to enter the Record Settings window.
12. Click Next button to enter the Record Settings window, as shown in Figure 2.9.
1) Select the camera to configure.
2) Check the checkbox to enable Start Recording.
3) Select the recording mode to Normal or Motion Detection.

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
