HIKVISION DS-7200 User Manual

User Manual of DS-7200/7300/8100 Series DVR
45

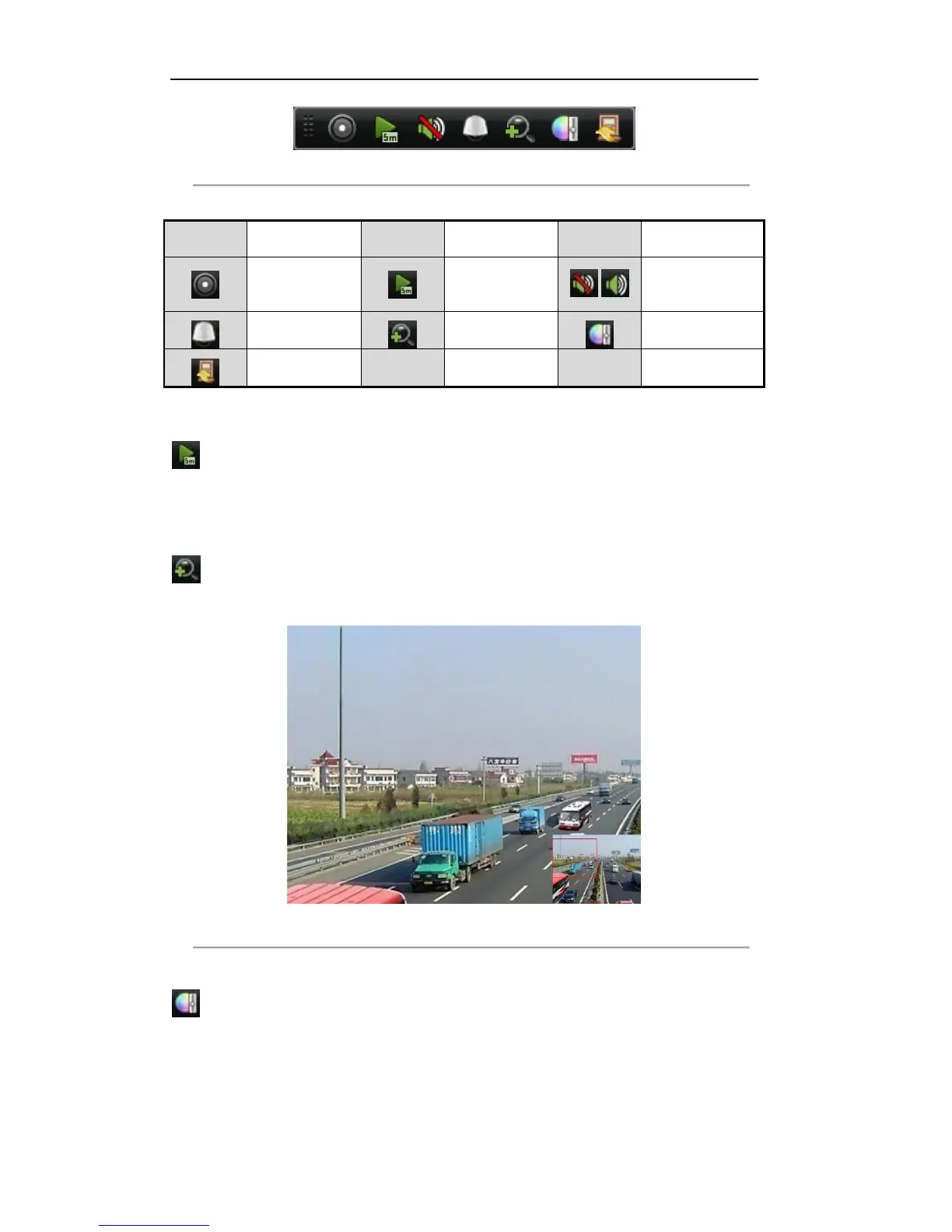

Figure 3. 3 Quick Settings Toolbar
Table 3. 4 Description of Quick Setting Toolbar Icons
Icons
Description
Icons
Description
Icons
Description
Enable Manual
Record
Instant Playback
/
Mute/Audio on
PTZ Control
Digital Zoom
Image Settings
Close
Instant Playback
Instant Playback only shows the record in last five minutes. If no record is found, it means there is no
record during the last five minutes.
Digital Zoom
Digital Zoom can zoom in the selected area to the full screen. You can left-click and draw to select the
area for zooming in, as shown in Figure 3.4.
Figure 3. 4 Digital Zoom
Image Settings
Image Settings icon can be selected to enter the Image Settings menu.
Task1: Configure image settings for the analog camera
Steps:
1. Set the period of a day for configuring independent image parameters so as to satisfy different light
conditions, e.g., daylight and night time. Two periods can be configured. When you have configured

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
