HIKVISION DS-A80 Series User Manual

DS-A80&81 Series Storage System User Manual
94

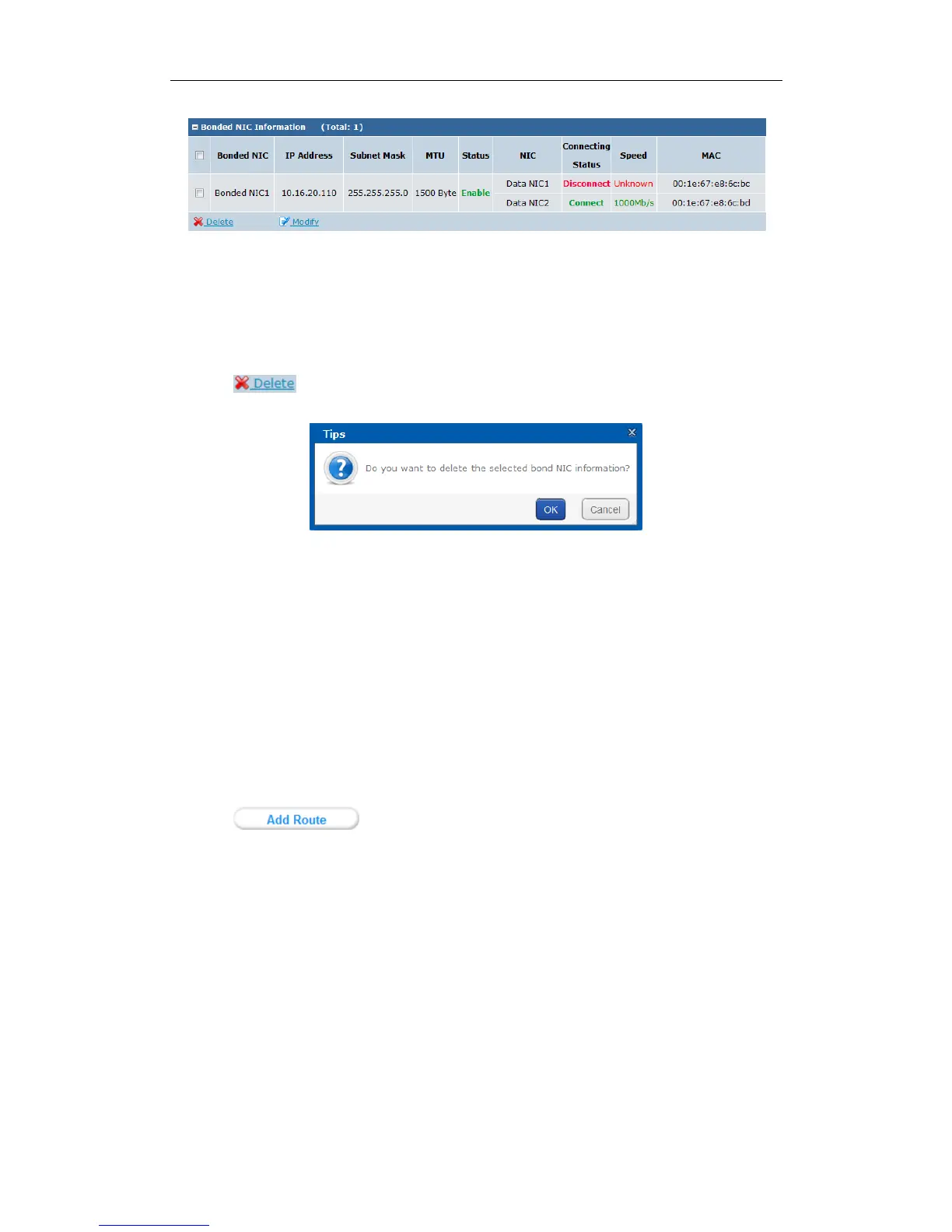

Figure 8. 6 Bonded NIC Information
8.1.2.2 Deleting Bond
Steps:
1. Check the bonded NIC checkbox.
2. Click and click OK in confirmation dialog box. Then the bonded NIC is recovered to several data
NICs.
Figure 8. 7 Confirmation Dialog Box
8.1.2.3 Modifying Bond Mode
For detailed information and steps, refer to section 8.1.5.2 Bond Mode.
8.1.3 Adding Route
Purpose:
By default, the route is empty, clients in different network segment access storage system via the default gateway.
If you want to access storage system via a specified gateway, add route here.
Steps:
1. Click in Custom Route Information list.
