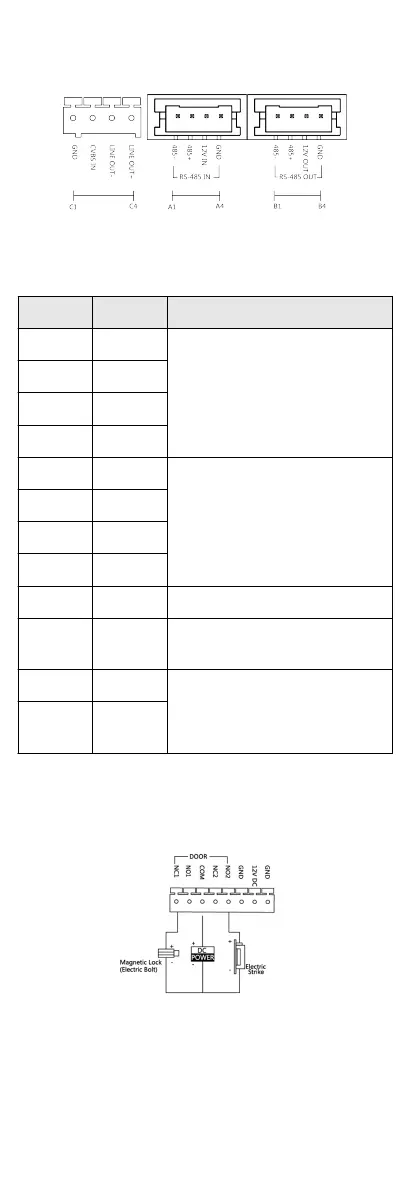

Page #20 background imageLoading...
Page #20 background image
Touch-Display Module
Figure 3-4 Touch-Display Module
Table 3-4 Descripon
No. Interface Descripon
A1 485-
Module-Connecng Interface
(Input)
A2 485+
A3 12V IN
A4 GND
B1 485-
Module-Connecng Interface
(Output)
B2 485+
B3 12V OUT
B4 GND
C1 GND Grounding Interface
C2 CVSB IN
Composite Video Broadcast
Signal Input (Reserved)
C3 LINEOUT-
Audio Output (Reserved)
C4
LINEOUT
+
3.2 Module Door Staon Wiring
3.2.1 Door Lock Wiring
Figure 3-5 Door Lock Wiring
10
