HIKVISION DS-KD8003-IME2 User Manual

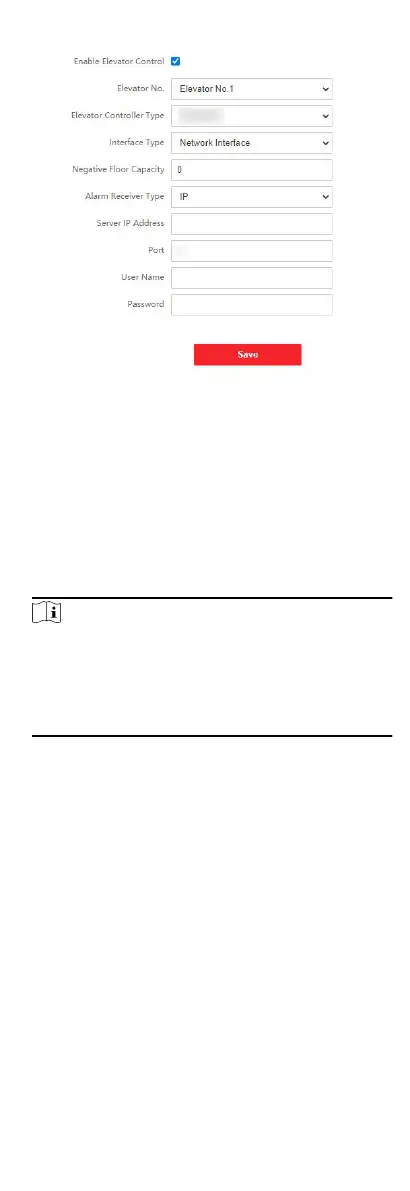

Figure 6-25 Elevator Control
2. Check to enable elevator control
funcon.
3. Select an Elevator No., and select an elevator controller.
4. Select Interface Type.
5. Enter Negave Floor Capacity, and select Alarm Receiver
Type.
6. Enter the elevator controller's Server IP Address, Port No.,
User Name, and Password.
7. Click Save to enable the
sengs.
Note
●
Up to 4 elevator controllers can be connected to one door
staon.
●
Up to 10 negave oors can be added.
●
Make sure the interface types of elevator controllers, which
are connected to the same door staon are consistent.
6.4.10 Theme Sengs
Set the adversement on the main page of the device.
Steps
1. Click
Conguraon → Theme to enter the sengs page.
54

HIKVISION DS-KD8003-IME2 Specifications

General

Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
Video codecs	H.264
Number of buttons	1 buttons
Streaming capability	Yes
Connectivity technology	Wired
Maximum number of cameras supported	-
Voice codecs	G.711u
Product color	Black, Grey
International Protection (IP) code	IP65
Operating relative humidity (H-H)	10 - 95 %
Door station operating temperature (T-T)	-40 - 60 °C
Indoor unit included	No
Outdoor unit power type	DC
Display diagonal	- \
Harmonized System (HS) code	85176920
