HIKVISION DS-KD8003-IME2 User Manual

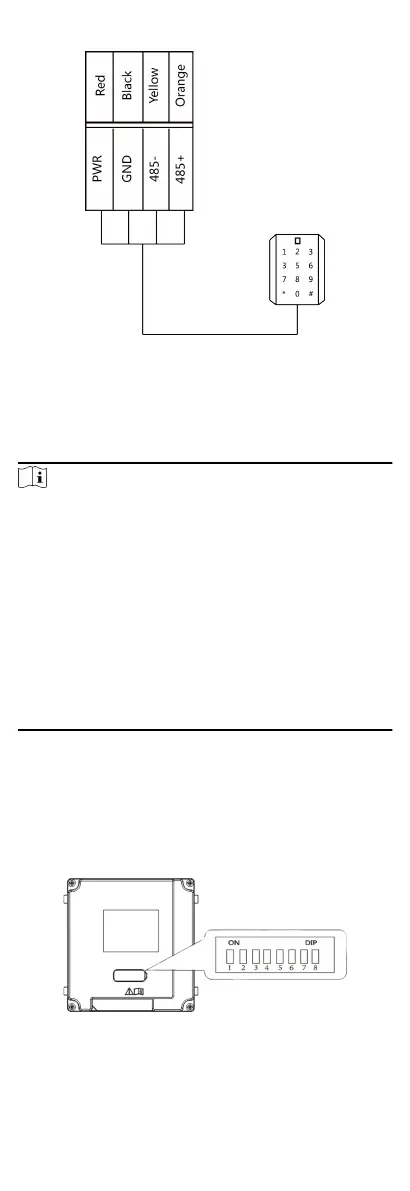

Figure 3-8 RS-485 Card Reader Wiring
4 Installaon
Note
●
Make sure the device in the package is in good condion and
all the assembly parts are included.
●
Sub module must work along with the main unit.
●
The PMR module is equipped with indicators so that it doesn't
have to be used with indicator sub module.
●
Set the sub module address before start the installaon steps.
●
Make sure the place for surface mounng is at.
●
Make sure all the related equipment is
power-o during the
installaon.
●
Tools that you need to prepare for installaon:
Drill (ø6), cross screwdriver (PH1*150 mm), and gradienter.
4.1 Congure Sub Module Address
You need to set the sub module address via DIP switch before
installaon.
Steps
1. Remove the rubber cover on the rear panel of the sub module
to expose the DIP switch.
Figure 4-1 DIP Switch
12

HIKVISION DS-KD8003-IME2 Specifications

General

Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
Video codecs	H.264
Number of buttons	1 buttons
Streaming capability	Yes
Connectivity technology	Wired
Maximum number of cameras supported	-
Voice codecs	G.711u
Product color	Black, Grey
International Protection (IP) code	IP65
Operating relative humidity (H-H)	10 - 95 %
Door station operating temperature (T-T)	-40 - 60 °C
Indoor unit included	No
Outdoor unit power type	DC
Display diagonal	- \
Harmonized System (HS) code	85176920
