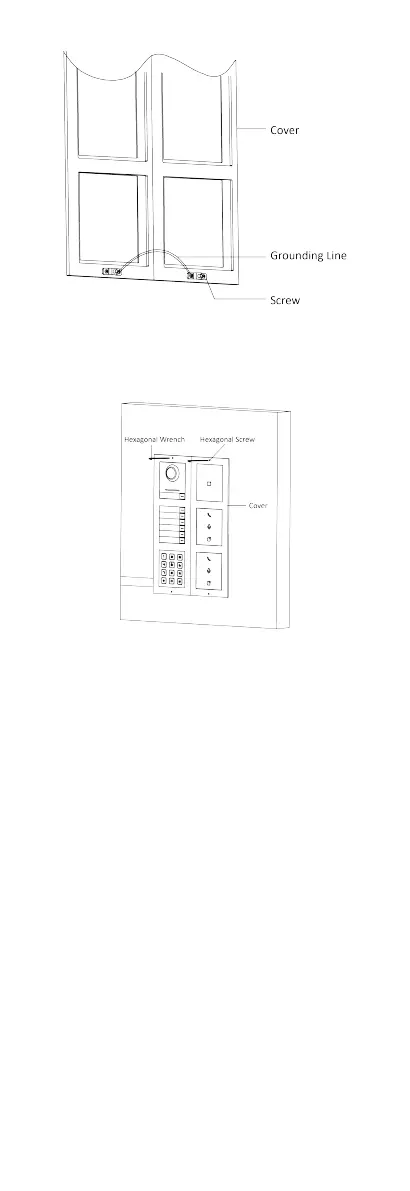

Figure 4-49 Connect the Grounding Line to the Cover
11. Fix the cover with 2 socket head cap screws by using a
hexagon wrench (supplied).
Figure 4-50 Fix the Cover
5 Acvaon
5.1 Acvate Device via Client Soware
You can only congure and operate the door staon aer creang
a password for the device acvaon.
Default parameters of door staon are as follows:
Default IP Address: 192.0.0.65.
Default Port No.: 8000.
Default User Name: admin.
Steps
1. Run the client
soware, click Maintenance and Management
→ Device Management → Device to enter the page.
2. Click Online Device.
3. Select an inacvated device and click Acvate.
4. Create a password, and conrm the password.
34

Table of Contents

Other manuals for HIKVISION DS-KD8003-IME2

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-KD8003-IME2 and is the answer not in the manual?

HIKVISION DS-KD8003-IME2 Specifications

General IconGeneral
Megapixel2 MP
Maximum frame rate30 fps
Supported video modes720p, 1080p
Viewing angle, vertical96 °
Maximum video resolution1920 x 1080 pixels
Viewing angle, horizontal180 °
Video codecsH.264
Number of buttons1 buttons
Streaming capabilityYes
Connectivity technologyWired
Maximum number of cameras supported-
Voice codecsG.711u
Product colorBlack, Grey
International Protection (IP) codeIP65
Operating relative humidity (H-H)10 - 95 %
Door station operating temperature (T-T)-40 - 60 °C
Indoor unit includedNo
Outdoor unit power typeDC
Display diagonal- \
Harmonized System (HS) code85176920
