HIKVISION DS-KD8003-IME2 User Manual

I Frame Interval
Set I Frame Interval from 1 to 400.
4. Click Save to save the sengs.
Audio Parameters
Steps
1. Click Video/Audio → Audio to enter the sengs page.

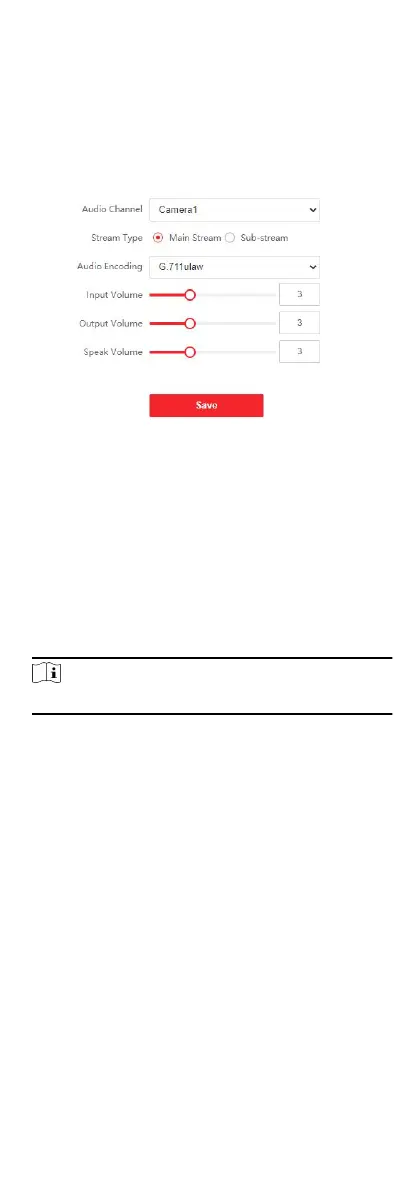

Figure 6-11 Audio Sengs
2. Congure the stream type and the audio encoding type.
Audio Channel
Select the audio channel to adjust the audio parameters.
Stream Type
Select the stream type to main stream or sub stream.
Audio Encoding
The device support G.711ulaw and G.711 alaw.
3. Adjust the Input Volume, Output Volume and Speak Volume.
Note
Available range of volume: 0 to 10.
4. Click Save to save the sengs.
6.4.5 Image
Sengs
Display Sengs
Congure the image adjustment, backlight sengs and other
parameters in display sengs.
Steps
1. Click Image → Display Sengs to enter the display sengs
page.
44

HIKVISION DS-KD8003-IME2 Specifications

General

Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
Video codecs	H.264
Number of buttons	1 buttons
Streaming capability	Yes
Connectivity technology	Wired
Maximum number of cameras supported	-
Voice codecs	G.711u
Product color	Black, Grey
International Protection (IP) code	IP65
Operating relative humidity (H-H)	10 - 95 %
Door station operating temperature (T-T)	-40 - 60 °C
Indoor unit included	No
Outdoor unit power type	DC
Display diagonal	- \
Harmonized System (HS) code	85176920
