HIKVISION DS-KD8003-IME2 User Manual

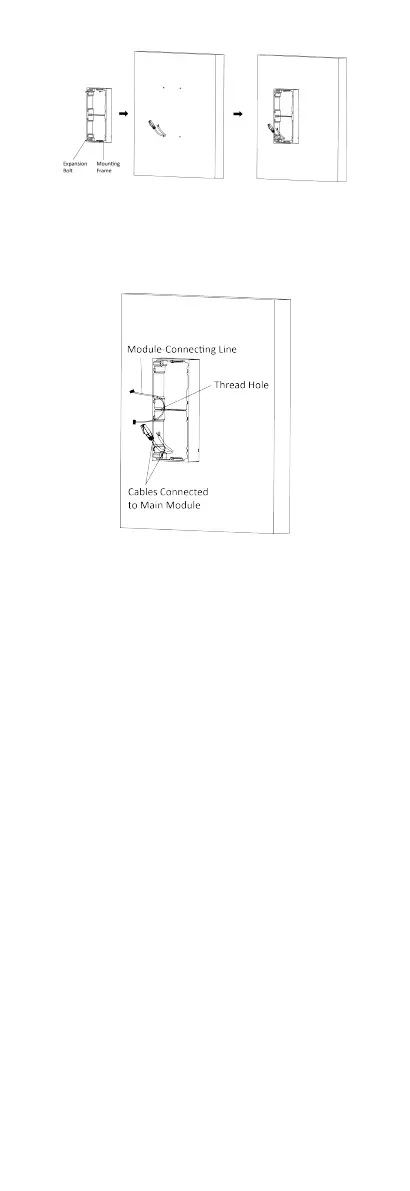

Figure 4-4 Fix the Mounng Frame
5. Thread the
module-connecng line across the thread hole of
the frame. Pass the main unit connecng lines across the
thread hole to the upper grid.
Figure 4-5 Placement of Lines
6. Connect the cables.
1) Connect the lines and module-connecng line to the
corresponding interfaces of the main unit, then place the
main unit into the upper grid.
2) Connect the other end of the
module-connecng line to the
input interface of the sub module.
3) Organize the cable with cable
e in the package. The
suggested cable connecon picture as shown below.
15

HIKVISION DS-KD8003-IME2 Specifications

General

Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
Video codecs	H.264
Number of buttons	1 buttons
Streaming capability	Yes
Connectivity technology	Wired
Maximum number of cameras supported	-
Voice codecs	G.711u
Product color	Black, Grey
International Protection (IP) code	IP65
Operating relative humidity (H-H)	10 - 95 %
Door station operating temperature (T-T)	-40 - 60 °C
Indoor unit included	No
Outdoor unit power type	DC
Display diagonal	- \
Harmonized System (HS) code	85176920
