Before You Start

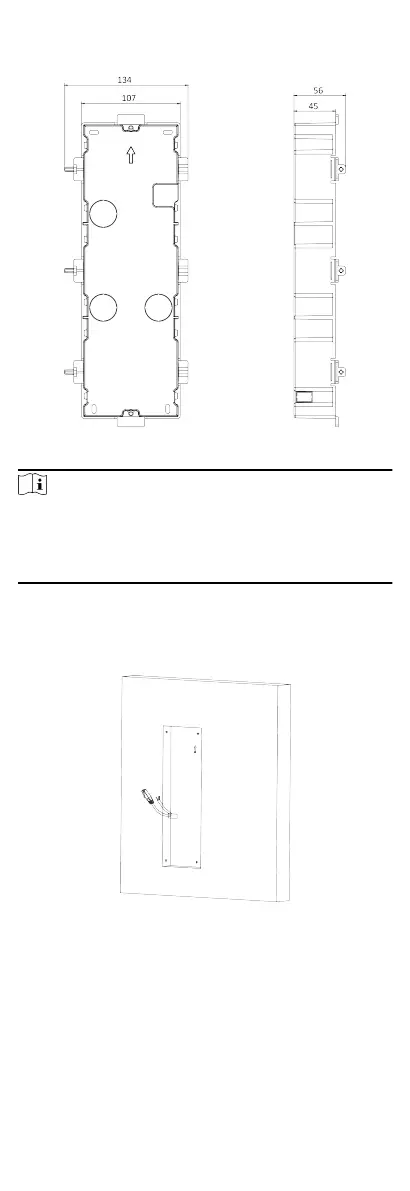

Figure 4-24 Gang Box
Note
●
The dimension of one-module gang box is: 338.8(W)×134(H)
×56(D) mm.
●
The dimensions above are for reference only. The actual size
can be slightly dierent from the theorecal dimension.
Steps
1. Cave the installaon hole, and pull the cable out.The suggested
dimension of
installaon hole is 321.8(W)×108(H)×45.5(D) mm.
The suggested length of cables le outside is 270 mm.
Figure 4-25 Cave the Installaon Hole
2. Select a cable entry and remove the plasc sheet.
3. Mark the gang box screw holes on the wall.
1) Route the cables through the gang box hole.
2) Insert the gang box into the installaon hole.
