3. Click Start. The IP Tester sends a unique signal that flashes the

switch’s connected LAN port.

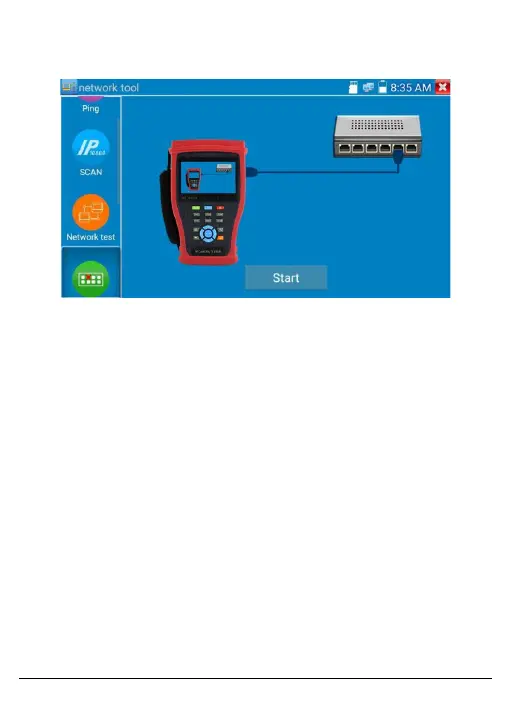

Figure 98, Port Flashing Screen

If the Tester and PoE switch are connected well, the LAN port of

the PoE switch will flash at special frequency. Otherwise, there

will not be any changes to the LAN port.
