UM IPC-4300H 040320NA 99

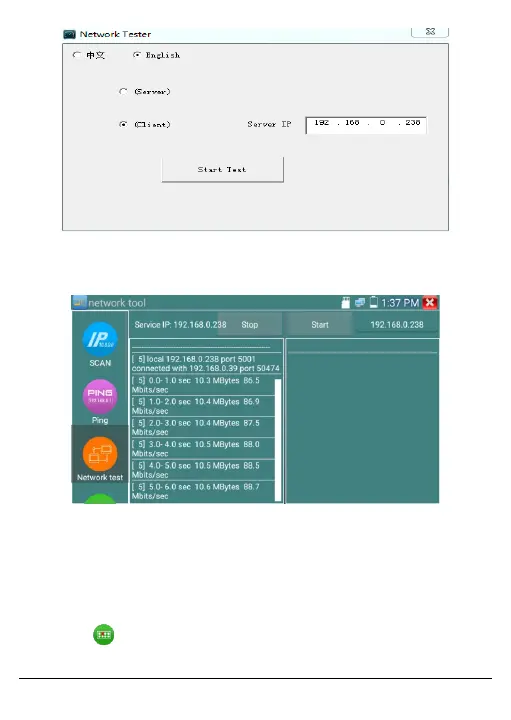

Figure 96, Server/Client Selection and IP Input Screen

Using the Tester as a Server shows the following results:

Figure 97, Ping Testing in Progress

• Port Flashing

1. Connect a network cable to the meter’s LAN port.

2. Click to start the Port Flashing application.
