UM IPC-4300H 040320NA 98

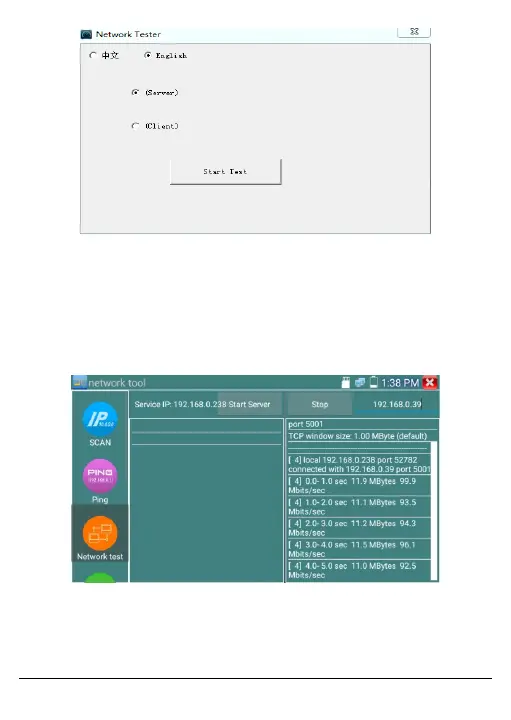

Figure 94, Server/Client and Language Selection Screen
When using the Tester as a Client, the Tester’s IP address is
192.168.0.238. Although the Server and Client are on at the same
network segment, they have different IP addresses. Enter the
Server’s IP address as 192.168.0.39 in the Tester and click Start”
to test network bandwidth.
Figure 95, Network Bandwidth Testing in Progress
Alternatively, the Tester can be used as a Server and the
computer as a test Client (in this case, select Client and enter the
Tester’s IP address in the Server IP field).
