• Status: After the cable is successfully connected, the screen
displays the “Online” status. If the cable is not connected or the
circuit is open, the screen displays an ”Open Circuit” status. Short
circuit cable situations display a “Short Circuit” status.
• Length: The maximum test length is 180 meters. When the status
is “Open Circuit” or “Short Circuit”, the cable length can be tested.
If the status is “Online”, test results will not be accurate.
• Cable Quality Test: Green indicates a good quality cable, yellow
indicates a poor quality cable, and red indicates a cable that has
been damaged by water. The attenuation value will be displayed
when the cable is over 10 meters in length.

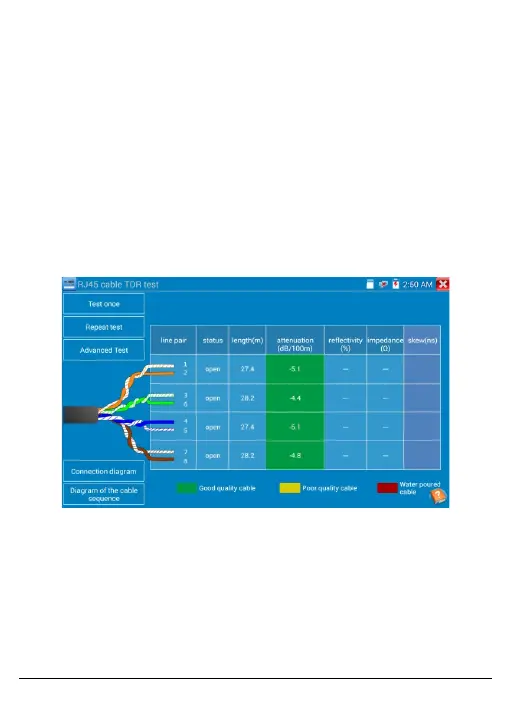

Figure 109, RJ-45 Cable TDR Test Screen
• Advanced Test: Test cable pair status, length, attenuation,
reflectivity, impedance, skew and other parameters.
• Attenuation Reflectivity: A reflectivity value of 0 (following a
successful connection) indicates the highest quality
communication.
