• Impedance: An impedance value of 100 Ω (following a successful

connection) indicates the highest quality communication. The

range is generally between 85 and 135 Ω.

• Skew: A skew value of 0 ns (following a successful 1000M

connection) indicates the highest quality communication. A value

over 50 ns leads to a Bit Error Rate in the transmission.

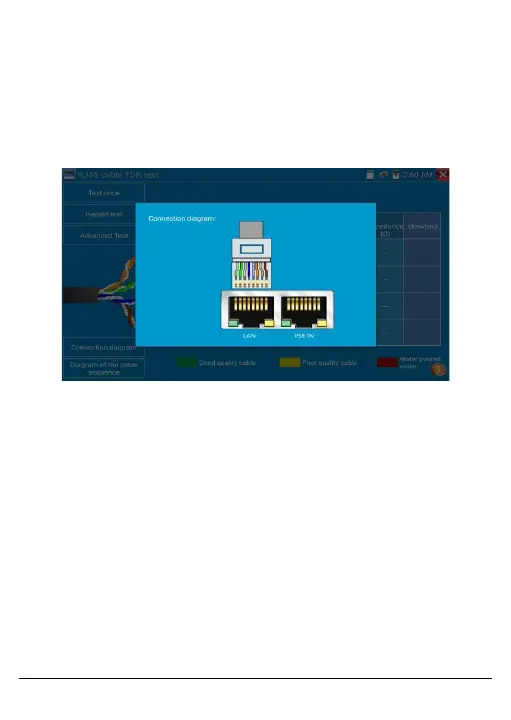

Figure 110, Cable Sequencing Diagram

A straight through and crossover cable diagram for reference

purposes is found below.
