HIKVISION IPC-4300H

To Next Page

To Previous Page

UM IPC-4300H 040320NA 141

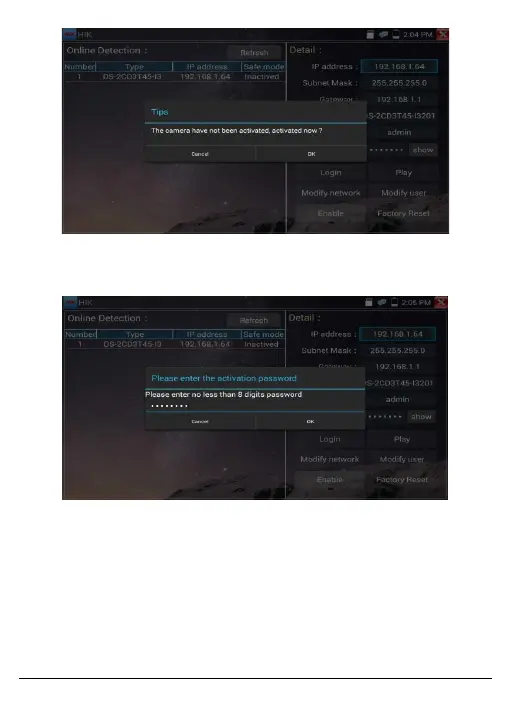

Figure 140, Hikvision Camera Activation Screen

• Input Password: Input the new password and tap OK to activate.

Figure 141, Password Input Screen

Confirm Activation: After activating the camera, the program

modifies the camera IP by default. Multiple cameras can be

activated in a Local Area Network. Modify the IP in the pop-up

menu to improve project efficiency.
