HIKVISION IPC-4300H

To Next Page

To Previous Page

UM IPC-4300H 040320NA 142

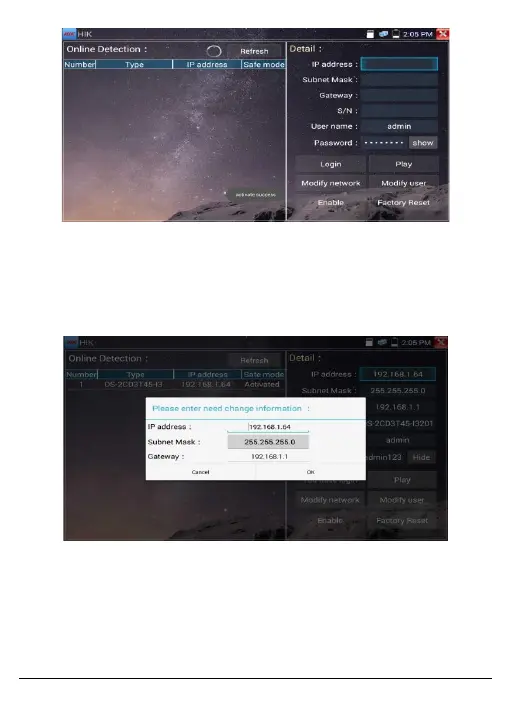

Figure 142, Camera IP Modification Screen

• Play: Display camera image.

• Modify Network Information: Change the camera IP address,

subnet mask, gateway, etc.

Figure 143, Network Information Modification Screen

• Modify User Information: Modify the camera’s user name and

password.
