UM IPC-4300H 040320NA 58

password, and click Official to enter the camera image display

interface (only DAHUA official protocols are supported at this

time).

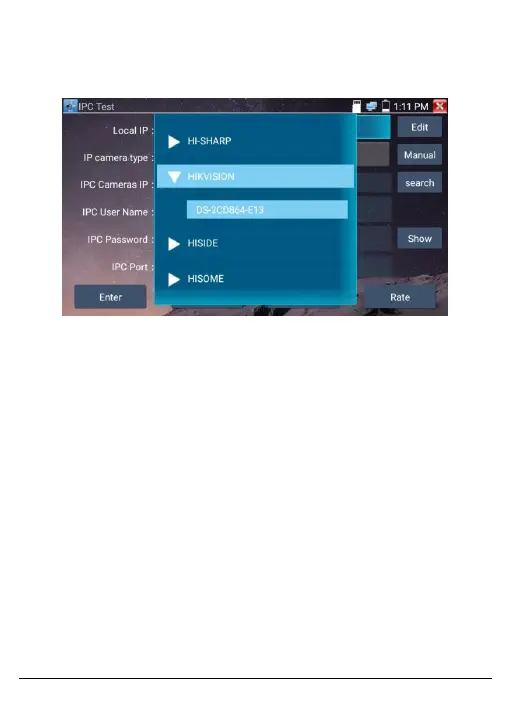

Figure 49, Manual IP Camera Testing Interface

• Stream Code: When testing a camera via RTSP, select mainstream

or substream (if RTSP is unsupported or has not been initialized,

“Auto Match Fail” will be displayed, and the stream must be

selected manually).

• Camera IP Address: Enter the camera’s IP address manually or

click Search to auto-scan for it. Connect the IP camera to the

Tester so that search results display only the camera’s IP address.

If the Tester is connected to a PoE switch, several IP addresses

will be displayed.

Main Page
