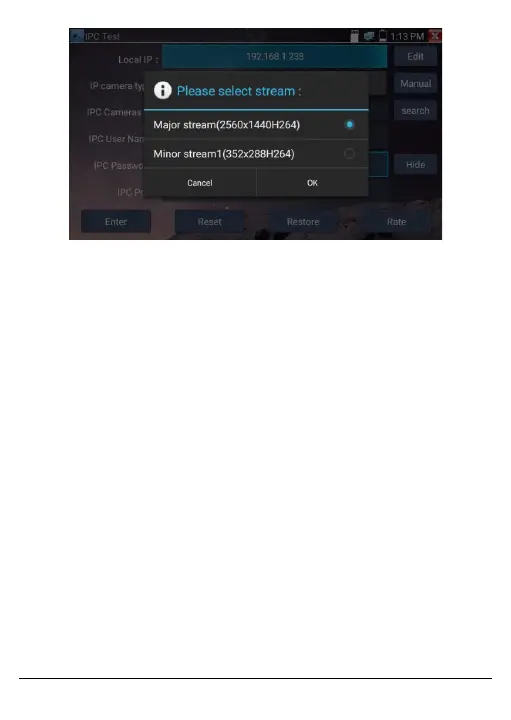

Figure 50, Stream Selection Screen

• IPC User Name: Enter the IP camera’s user name.

• IPC Password: Enter the IP camera’s login password.

• IPC Port: When the IP camera type is selected, the camera port

number will be defaulted.

Click Enter to view the live video.
