UM IPC-4300H 040320NA 83

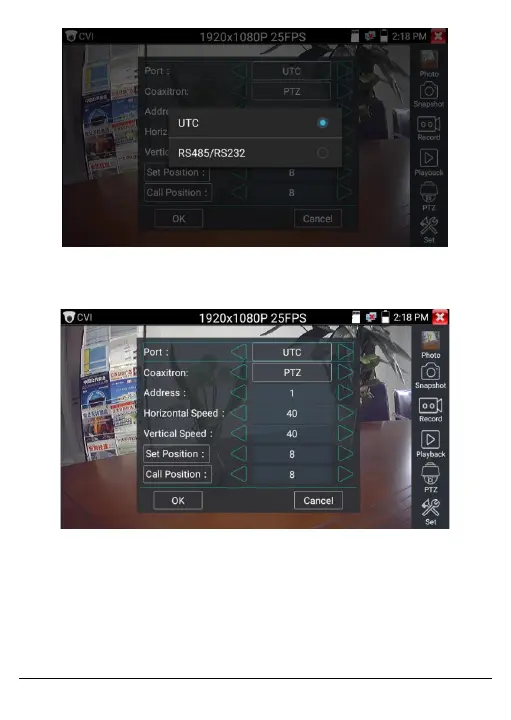

Figure 73, Coaxial Control Selection Box

Enter the PTZ address to set the parameters.

Figure 74, CVI Settings Screen

To control the PTZ using the touch screen:

Tap left, right, upward and downward on the touch screen to

control the PTZ rotation direction.
