UM IPC-4300H 040320NA 85

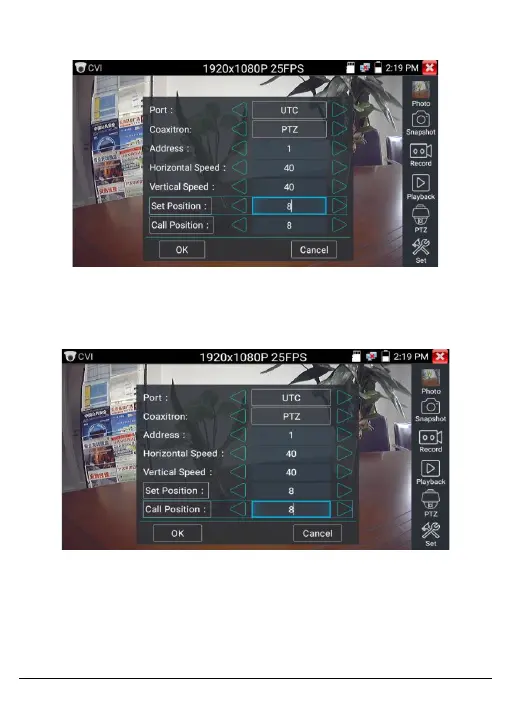

• Call Preset Position:

Figure 75, CVI Preset Settings Screen

Tap the preset position area and input preset position number.

Tap Call Position to call the preset position.

Figure 76, CVI Preset Settings Screen
