User Manual of Network Camera
104

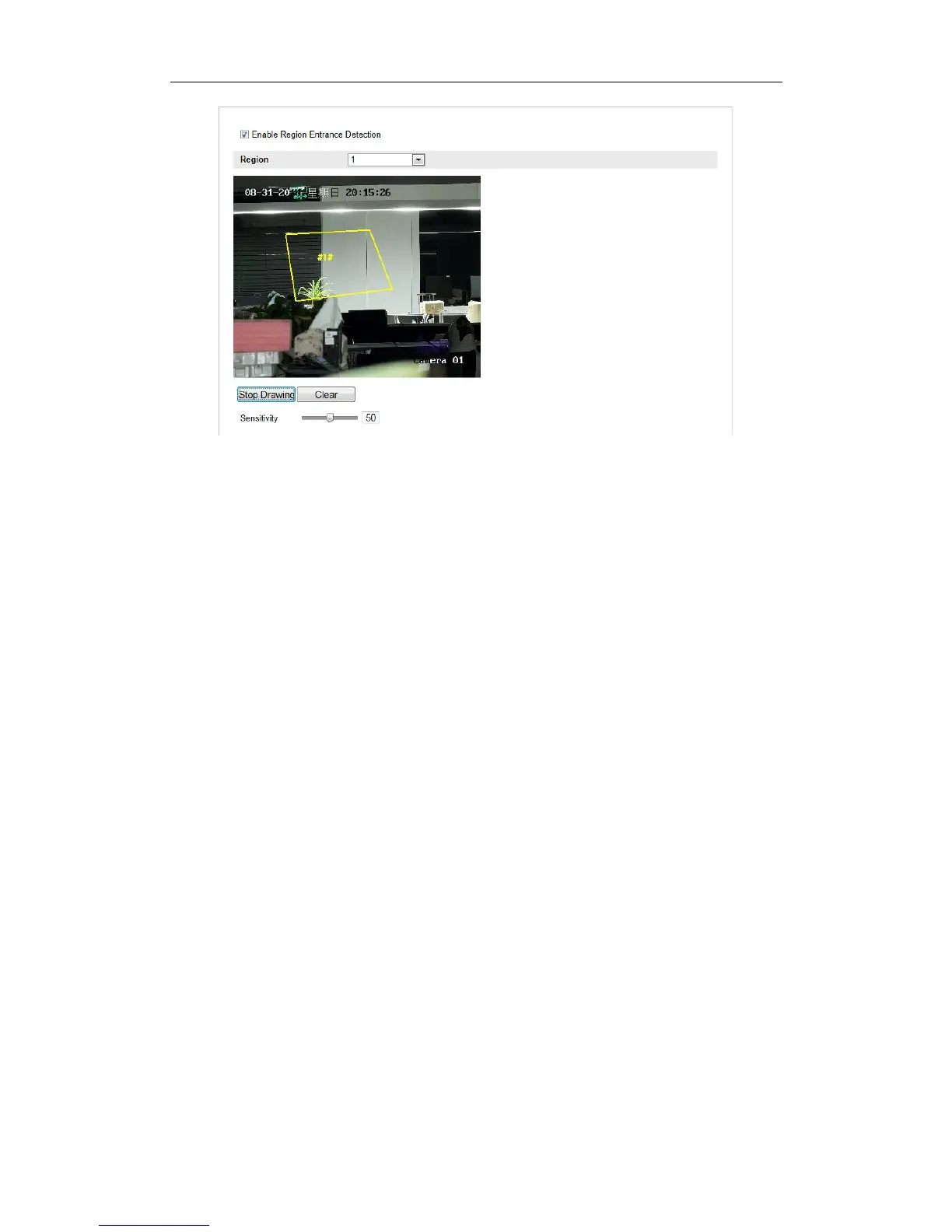

Figure 6-64 Configuring Region Entrance Detection
6.6.14 Configuring Region Exiting Detection
Purpose:
Region exiting detection function detects people, vehicle or other objects which exit
from a pre-defined virtual region, and some certain actions can be taken when the
alarm is triggered.
Note: Region exiting detection function varies according to different camera models.
Steps:
1. Enter the Region Exiting Detection settings interface:
Configuration> Advanced Configuration> Smart Event> Region Exiting
Detection
2. Check the checkbox of Enable Region Exiting Detection to enable the function.
3. Select the region from the drop-down list for detection settings.
4. Click the Draw Area button to start the region drawing.
5. Click on the live video to specify the four vertexes of the detection region, and
right click to complete drawing.
6. Click-and-drag the slider to set the detection sensitivity.
Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the

HIKVISION NETWORK CAMERA Specifications

General

Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Lens	Fixed or varifocal (depending on model)
Compression	H.265+, H.265, H.264+, H.264
Audio	Built-in microphone and/or audio input/output (depending on model)
Network	Ethernet (RJ-45)
Power Supply	PoE or DC 12V (depending on model)
Weatherproof	IP66 or IP67 (depending on model)
Image Sensor	CMOS (depending on model)
Smart Features	Motion detection, line crossing detection, intrusion detection
Storage	MicroSD card slot (up to 256GB), NAS
Network Interface	10/100 Mbps Ethernet
