HIKVISION NETWORK CAMERA User Manual

User Manual of Network Camera
18

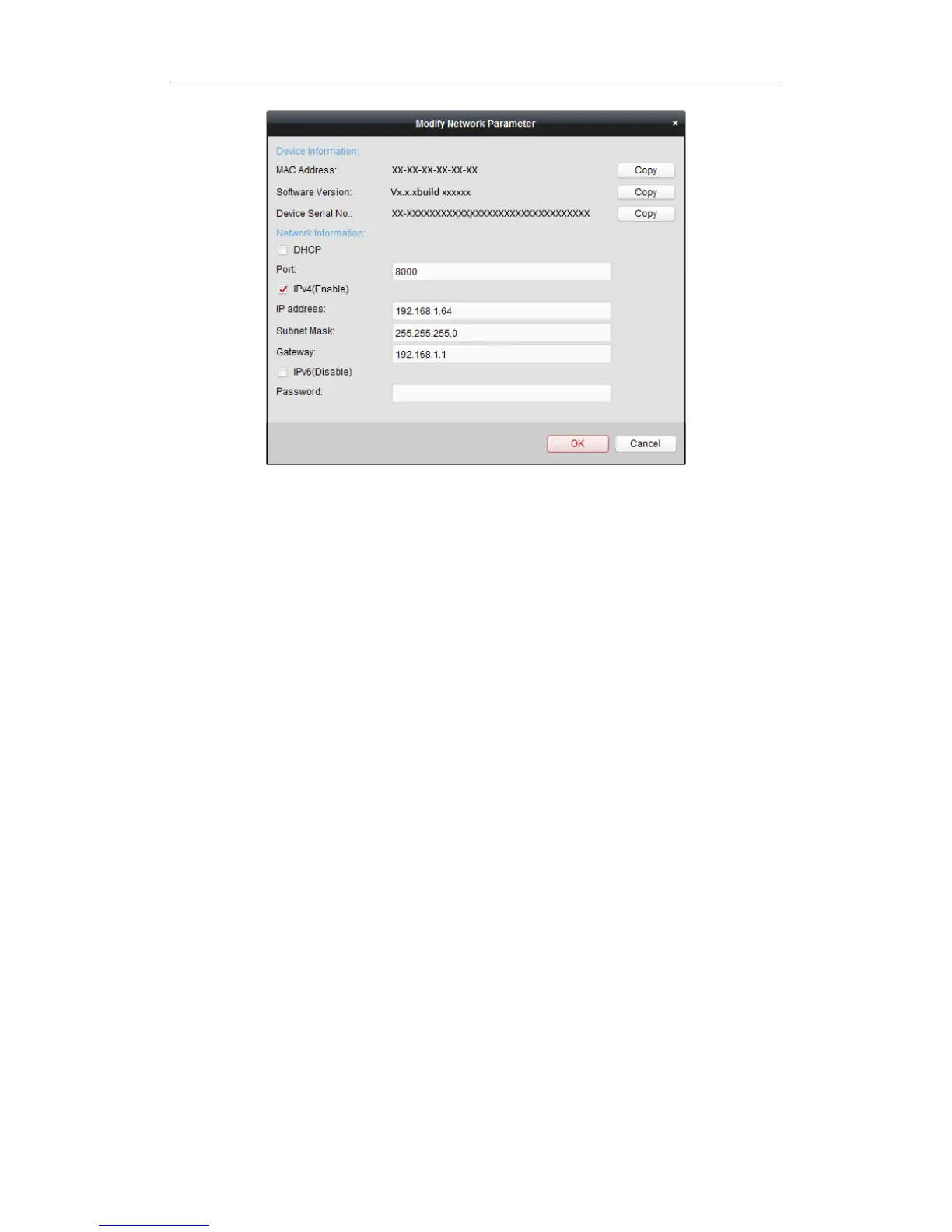

Figure 2-9 Modifying the Network Parameters
8. Change the device IP address to the same subnet with your computer by either
modifying the IP address manually or checking the checkbox of Enable DHCP.
9. Input the password to activate your IP address modification.
2.2 Setting the Network Camera over the WAN
Purpose:
This section explains how to connect the network camera to the WAN with a static IP
or a dynamic IP.
2.2.1 Static IP Connection
Before you start:
Please apply a static IP from an ISP (Internet Service Provider). With the static IP
address, you can connect the network camera via a router or connect it to the WAN
directly.
 Connecting the network camera via a router
Steps:
1. Connect the network camera to the router.

HIKVISION NETWORK CAMERA Specifications

General

Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Lens	Fixed or varifocal (depending on model)
Compression	H.265+, H.265, H.264+, H.264
Audio	Built-in microphone and/or audio input/output (depending on model)
Network	Ethernet (RJ-45)
Power Supply	PoE or DC 12V (depending on model)
Weatherproof	IP66 or IP67 (depending on model)
Image Sensor	CMOS (depending on model)
Smart Features	Motion detection, line crossing detection, intrusion detection
Storage	MicroSD card slot (up to 256GB), NAS
Network Interface	10/100 Mbps Ethernet
