HIKVISION NETWORK CAMERA User Manual

User Manual of Network Camera
88
mode.
(7)Click Save to save the settings.
 Day/Night Scheduled-Switch
(1)Draw the detection area as in the normal configuration mode. Up to 8 areas are
supported.
(2)Select Scheduled-Switch for Switch Day and Night Settings.

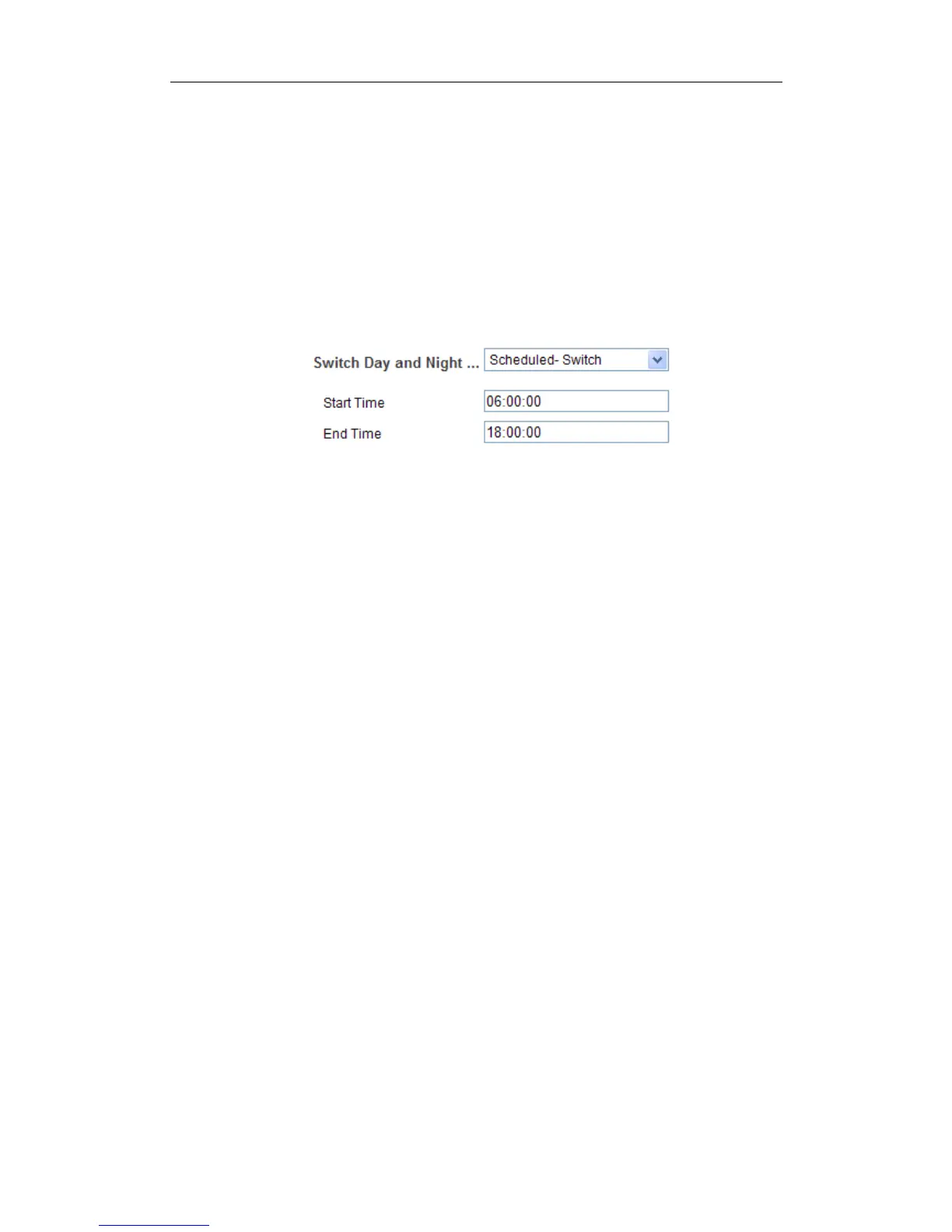

Figure 6-50 Day/Night Scheduled-Switch
(3)Select the start time and the end time for the switch timing.
(4)Select the area by clicking the area No.
(5)Slide the cursor to adjust the sensitivity and proportion of object on the area
for the selected area in the daytime.
(6)Slide the cursor to adjust the sensitivity and proportion of object on the area
for the selected area at night.
(7)Set the arming schedule and linkage method as in the normal configuration
mode.
(8)Click Save to save the settings.
6.6.2 Configuring Video Tampering Alarm
Purpose:
You can configure the camera to trigger the alarm when the lens is covered and take
some certain alarm response actions.
Steps:
1. Enter the video tampering Settings interface:
Configuration > Advanced Configuration > Basic Event > Video Tampering

HIKVISION NETWORK CAMERA Specifications

General

Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Lens	Fixed or varifocal (depending on model)
Compression	H.265+, H.265, H.264+, H.264
Audio	Built-in microphone and/or audio input/output (depending on model)
Network	Ethernet (RJ-45)
Power Supply	PoE or DC 12V (depending on model)
Weatherproof	IP66 or IP67 (depending on model)
Image Sensor	CMOS (depending on model)
Smart Features	Motion detection, line crossing detection, intrusion detection
Storage	MicroSD card slot (up to 256GB), NAS
Network Interface	10/100 Mbps Ethernet
