HIKVISION NETWORK CAMERA User Manual

User Manual of Network Camera
87
(3)Select the area by clicking the area No..
(4)Slide the cursor to adjust the sensitivity and proportion of object on the area
for the selected area.
(5)Set the arming schedule and linkage method as in the normal configuration
mode.
(6)Click Save to save the settings.
 Day/Night Auto-Switch
Steps:
(1)Draw the detection area as in the normal configuration mode. Up to 8 areas are
supported.
(2)Select Auto-Switch for Switch Day and Night Settings.

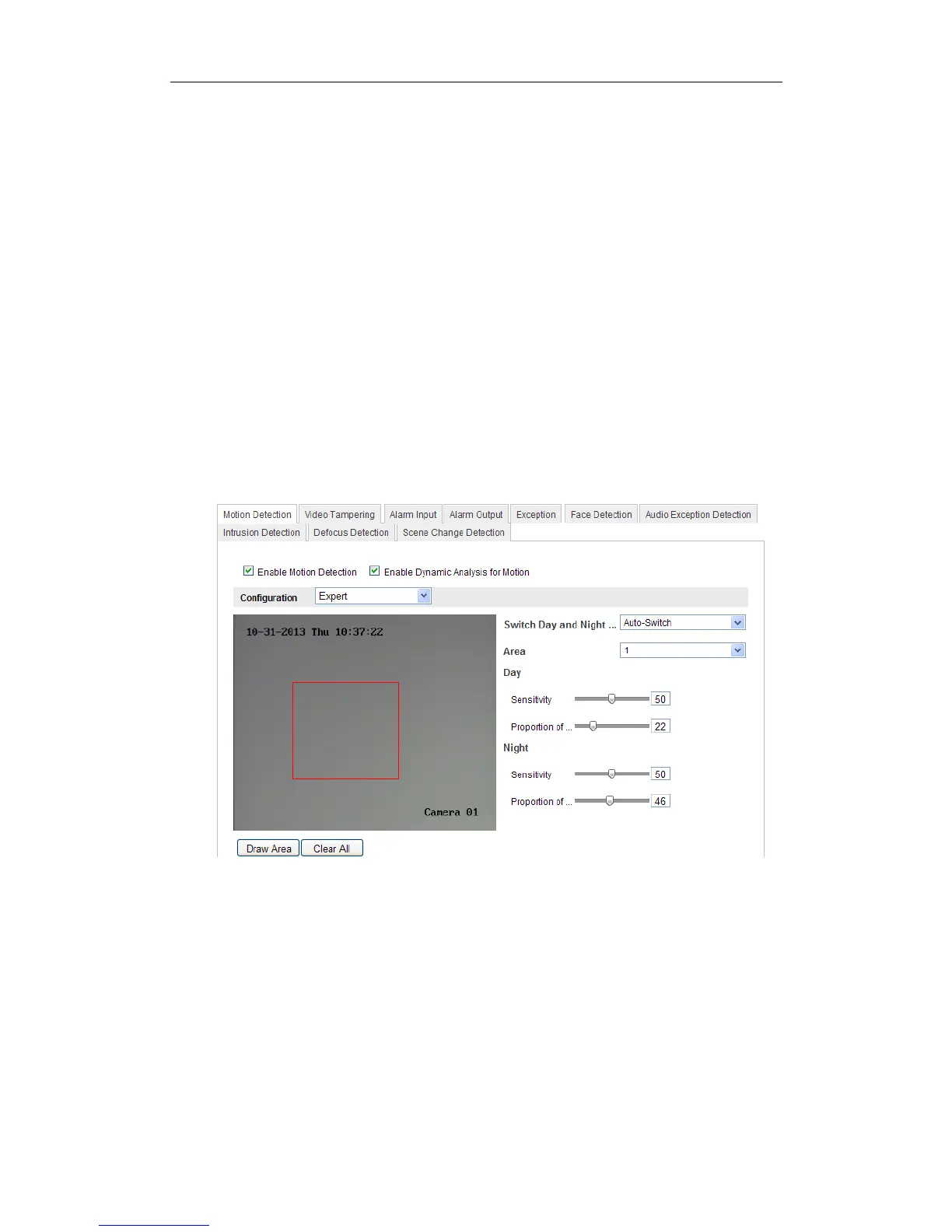

Figure 6-49 Day/Night Auto-Switch
(3)Select the area by clicking the area No.
(4)Slide the cursor to adjust the sensitivity and proportion of object on the area
for the selected area in the daytime.
(5)Slide the cursor to adjust the sensitivity and proportion of object on the area
for the selected area at night.
(6)Set the arming schedule and linkage method as in the normal configuration

HIKVISION NETWORK CAMERA Specifications

General

Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Lens	Fixed or varifocal (depending on model)
Compression	H.265+, H.265, H.264+, H.264
Audio	Built-in microphone and/or audio input/output (depending on model)
Network	Ethernet (RJ-45)
Power Supply	PoE or DC 12V (depending on model)
Weatherproof	IP66 or IP67 (depending on model)
Image Sensor	CMOS (depending on model)
Smart Features	Motion detection, line crossing detection, intrusion detection
Storage	MicroSD card slot (up to 256GB), NAS
Network Interface	10/100 Mbps Ethernet
