HIKVISION NETWORK CAMERA User Manual

User Manual of Network Camera
86
 The captured image can also be uploaded to the available SD card or network
disk.
 Trigger Channel
The video will be recorded when the motion is detected. You have to set the
recording schedule to realize this function. Please refer to Section 7.2 for
detailed information.
 Trigger Alarm Output
Trigger one or more external alarm outputs when an event occurs.
Note: To trigger an alarm output when an event occurs, please refer to Section
6.6.4 Configuring Alarm Output to set the related parameters.
 Expert Configuration
Expert mode is mainly used to configure the sensitivity and proportion of object on
area of each area for different day/night switch.

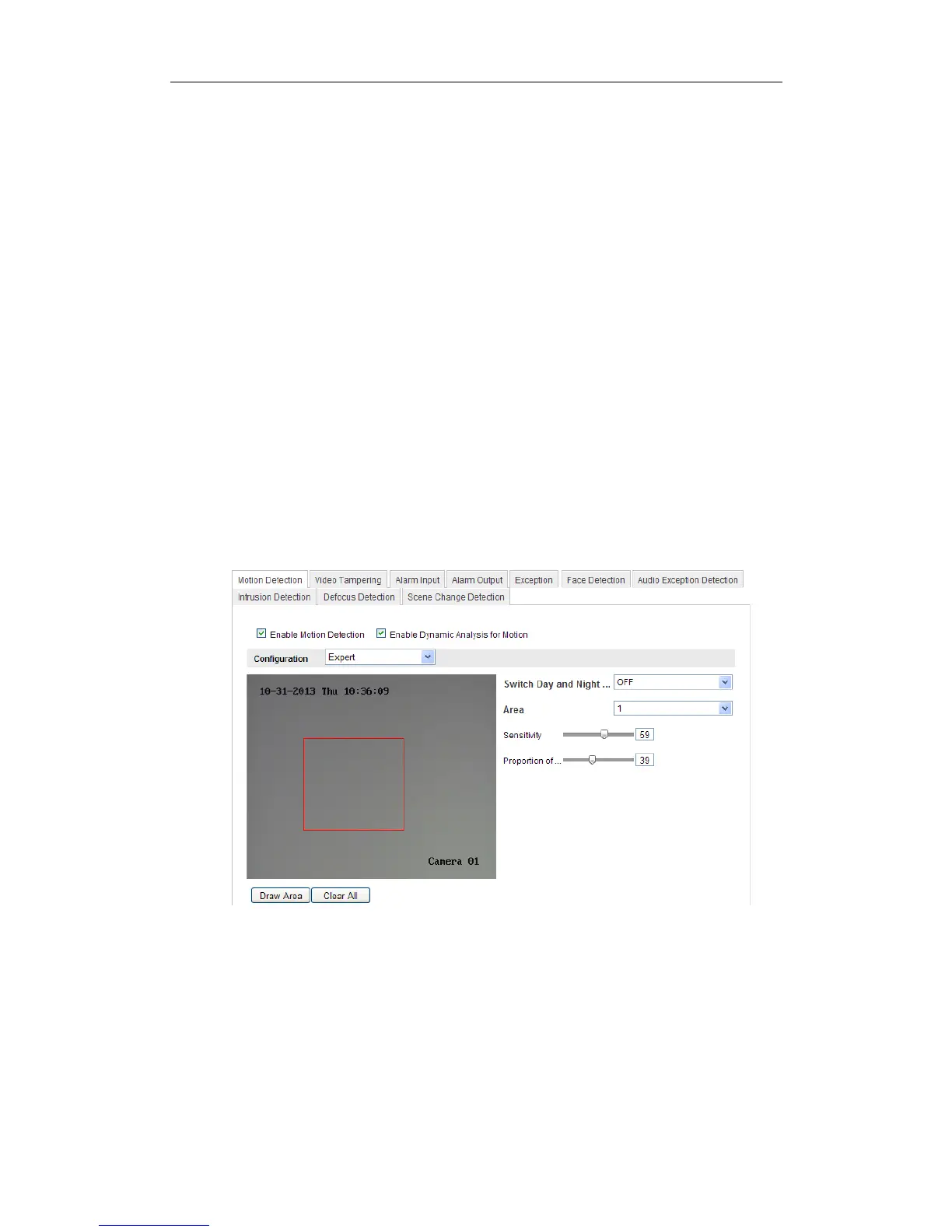

Figure 6-48 Expert Mode of Motion Detection
 Day/Night Switch OFF
Steps:
(1)Draw the detection area as in the normal configuration mode. Up to 8 areas are
supported.
(2)Select OFF for Switch Day and Night Settings.

HIKVISION NETWORK CAMERA Specifications

General

Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Lens	Fixed or varifocal (depending on model)
Compression	H.265+, H.265, H.264+, H.264
Audio	Built-in microphone and/or audio input/output (depending on model)
Network	Ethernet (RJ-45)
Power Supply	PoE or DC 12V (depending on model)
Weatherproof	IP66 or IP67 (depending on model)
Image Sensor	CMOS (depending on model)
Smart Features	Motion detection, line crossing detection, intrusion detection
Storage	MicroSD card slot (up to 256GB), NAS
Network Interface	10/100 Mbps Ethernet
