HIKVISION NETWORK CAMERA User Manual

User Manual of Network Camera
85
3. Set the Alarm Actions for Motion Detection.
Check the checkbox to select the linkage method. Notify surveillance center,
send email, upload to FTP, trigger channel and trigger alarm output are selectable.
You can specify the linkage method when an event occurs.

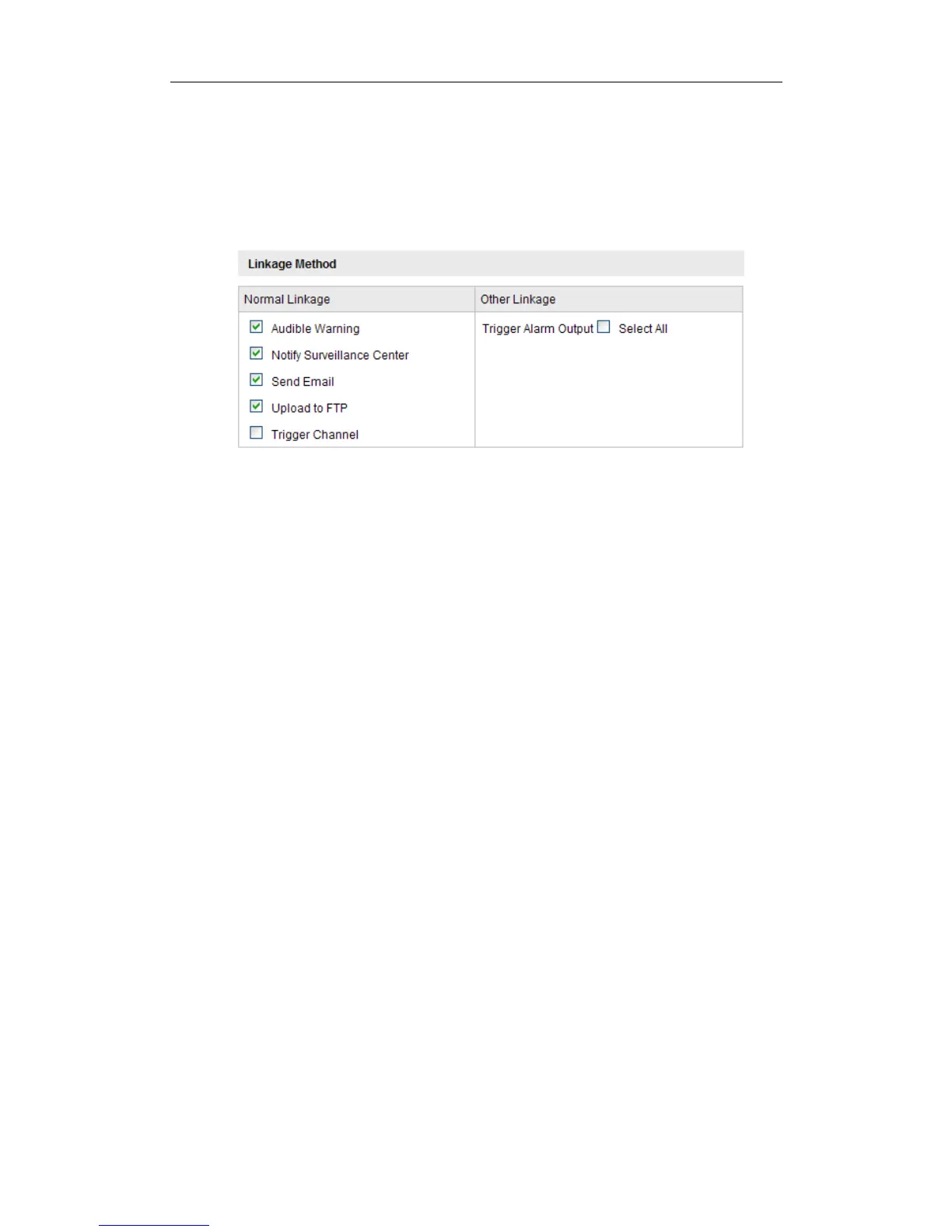

Figure 6-47 Linkage Method
 Audible Warning
Trigger the audible warning locally. And it only supported by the device have
the audio output.
 Notify Surveillance Center
Send an exception or alarm signal to remote management software when an
event occurs.
 Send Email
Send an email with alarm information to a user or users when an event occurs.
Note: To send the Email when an event occurs, you need to refer to Section
6.3.10 Email Sending Triggered by Alarm to set the related parameters.
 Upload to FTP
Capture the image when an alarm is triggered and upload the picture to a FTP
server.
Notes:
 Set the FTP address and the remote FTP server first. Refer to Section 6.3.12
Configuring FTP Settings for detailed information.
 Go to Advanced Configuration > Storage > Snapshot page, enable the
event-triggered snapshot, and set the capture interval and capture number.

HIKVISION NETWORK CAMERA Specifications

General

Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Lens	Fixed or varifocal (depending on model)
Compression	H.265+, H.265, H.264+, H.264
Audio	Built-in microphone and/or audio input/output (depending on model)
Network	Ethernet (RJ-45)
Power Supply	PoE or DC 12V (depending on model)
Weatherproof	IP66 or IP67 (depending on model)
Image Sensor	CMOS (depending on model)
Smart Features	Motion detection, line crossing detection, intrusion detection
Storage	MicroSD card slot (up to 256GB), NAS
Network Interface	10/100 Mbps Ethernet
