HIKVISION NETWORK CAMERA User Manual

User Manual of Network Camera
134

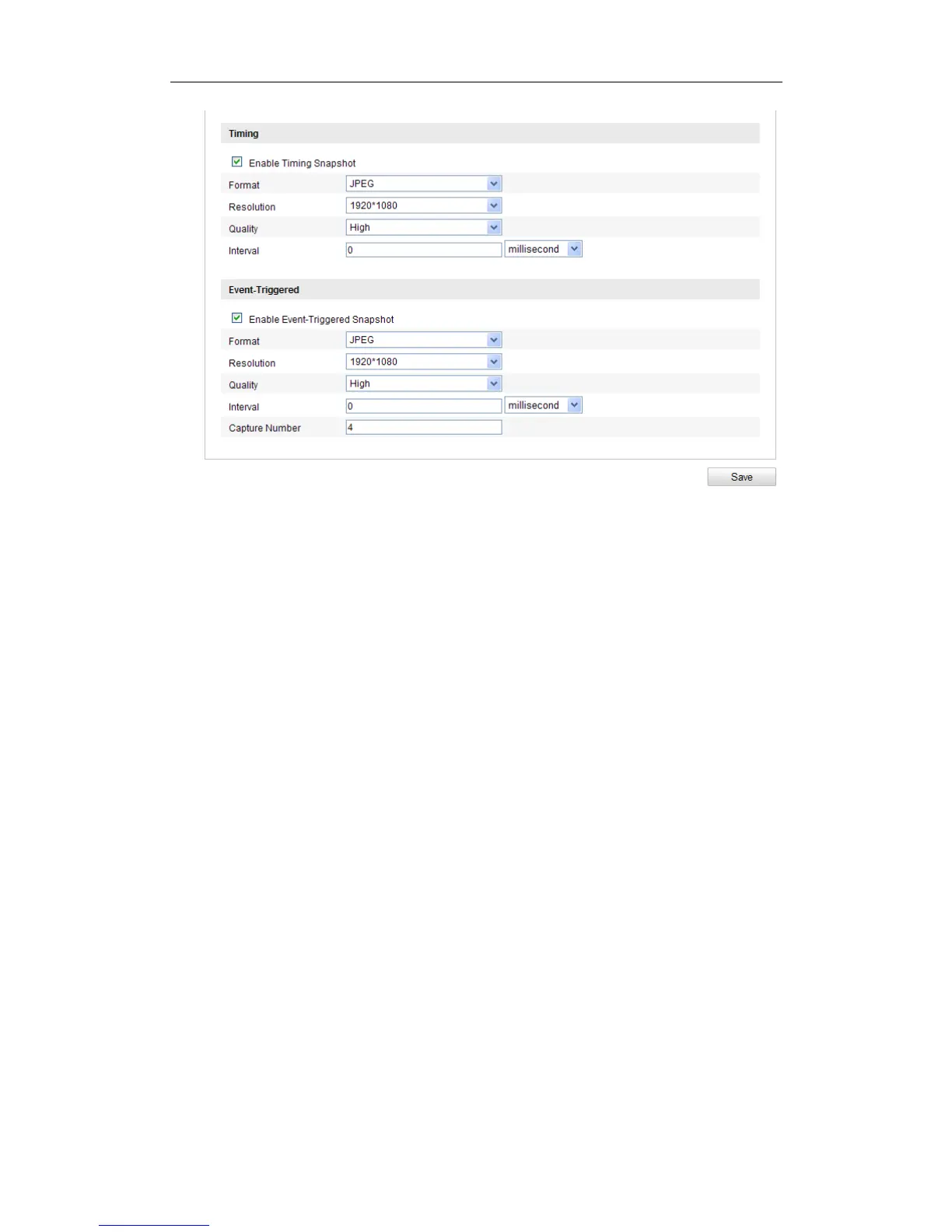

Figure 7-9 Snapshot Settings
7.4 Configuring Lite Storage
Purpose:
When there is no moving object in the monitoring scenario, the frame rate and bitrate
of the video stream can be reduced to lengthen the storage time of the SD card.
Notes:
 Lite storage function varies according to different camera models.
 The video files recorded in lite storage mode will be played back in full frame
rate (25fps / 30fps), and thus the playback process is speeded up to the eye.
1. Enter the Lite Storage interface: Configuration > Advanced Configuration >
Storage > Lite Storage.
2. Check the Checkbox of Enable to enable the lite storage function.
3. Input the storage time in the text field. You can view the available space of the SD
card on the page.
4. Click Save to save the settings.

HIKVISION NETWORK CAMERA Specifications

General

Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Lens	Fixed or varifocal (depending on model)
Compression	H.265+, H.265, H.264+, H.264
Audio	Built-in microphone and/or audio input/output (depending on model)
Network	Ethernet (RJ-45)
Power Supply	PoE or DC 12V (depending on model)
Weatherproof	IP66 or IP67 (depending on model)
Image Sensor	CMOS (depending on model)
Smart Features	Motion detection, line crossing detection, intrusion detection
Storage	MicroSD card slot (up to 256GB), NAS
Network Interface	10/100 Mbps Ethernet
