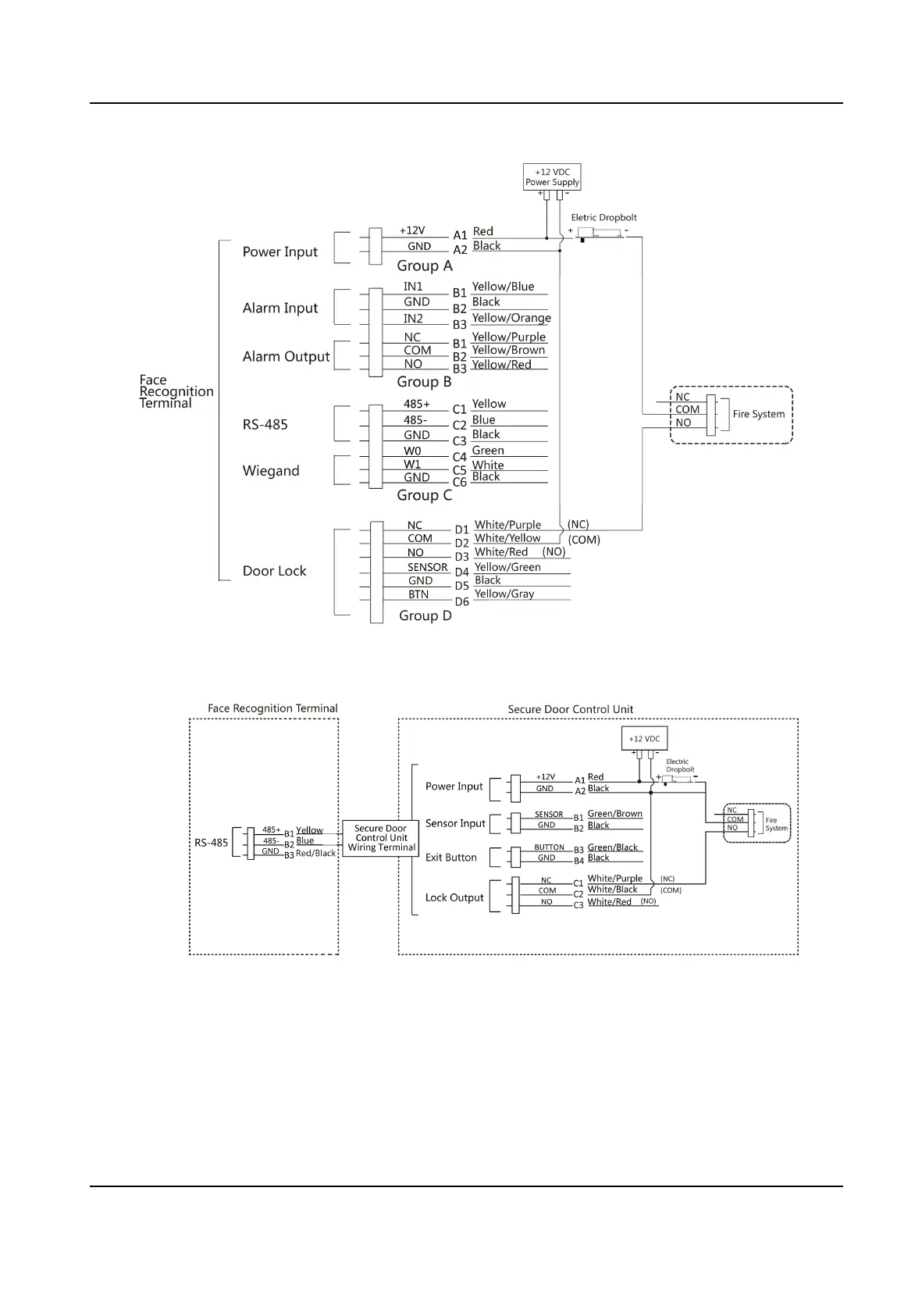

Figure 4-6 Wiring Device
Figure 4-7 Wiring Secure Door Control Unit
4.4.2 Wiring Diagram of Door Locked When Powering
O
Lock Type: Cathode Lock, Electric Lock, and Electric Bolt (NC)
Security Type: Door Locked When Powering O
Face Recognion Terminal User Manual
14
