Function Checks
Chapter 2: Troubleshooting Procedures

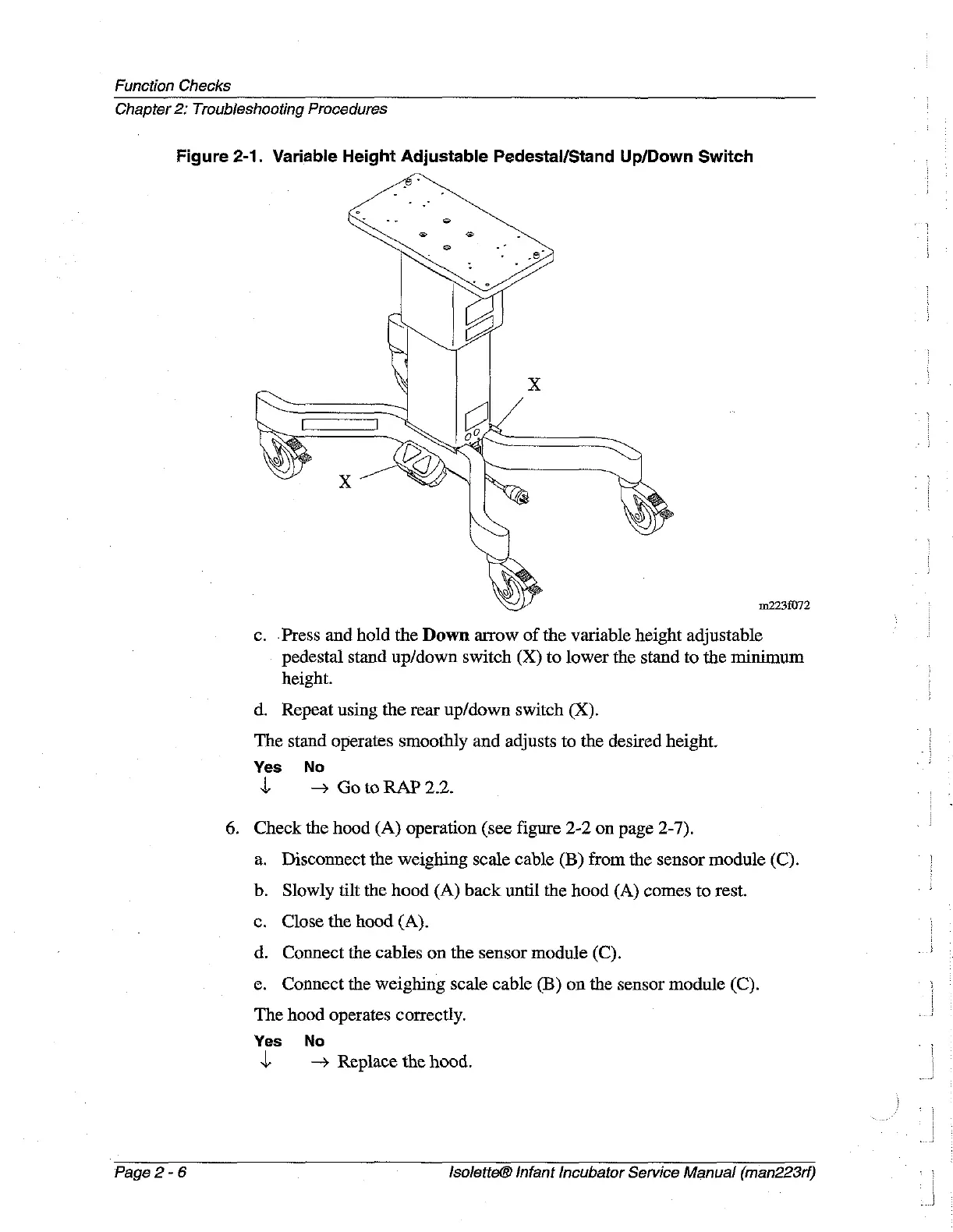

Figure 2-1. Variable Height Adjustable Pedestal/Stand Up/Down Switch
112234072
c. „Press and hold the Down arrow of the variable height adjustable
pedestal stand up/down switch (X) to lower the stand to the minimum
height.
d. Repeat using the rear up/down switch (X).
The stand operates smoothly and adjusts to the desired height.
Yes No
L © > GotoRAP22.
6. Check the hood (A) operation (see figure 2-2 on page 2-7).
a. Disconnect the weighing scale cable (B) from the sensor module (C).
b. Slowly tilt the hood (A) back until the hood (A) comes to rest.
Close the hood (A).
d. Connect the cables on the sensor module (C). 一
e
e. Connect the weighing scale cable (B) on the sensor module (C).
The hood operates correctly.
Yes No o
| — Replace the hood. i
Page 2-6 Isolette® Infant Incubator Service Manual (man228rf) 13
