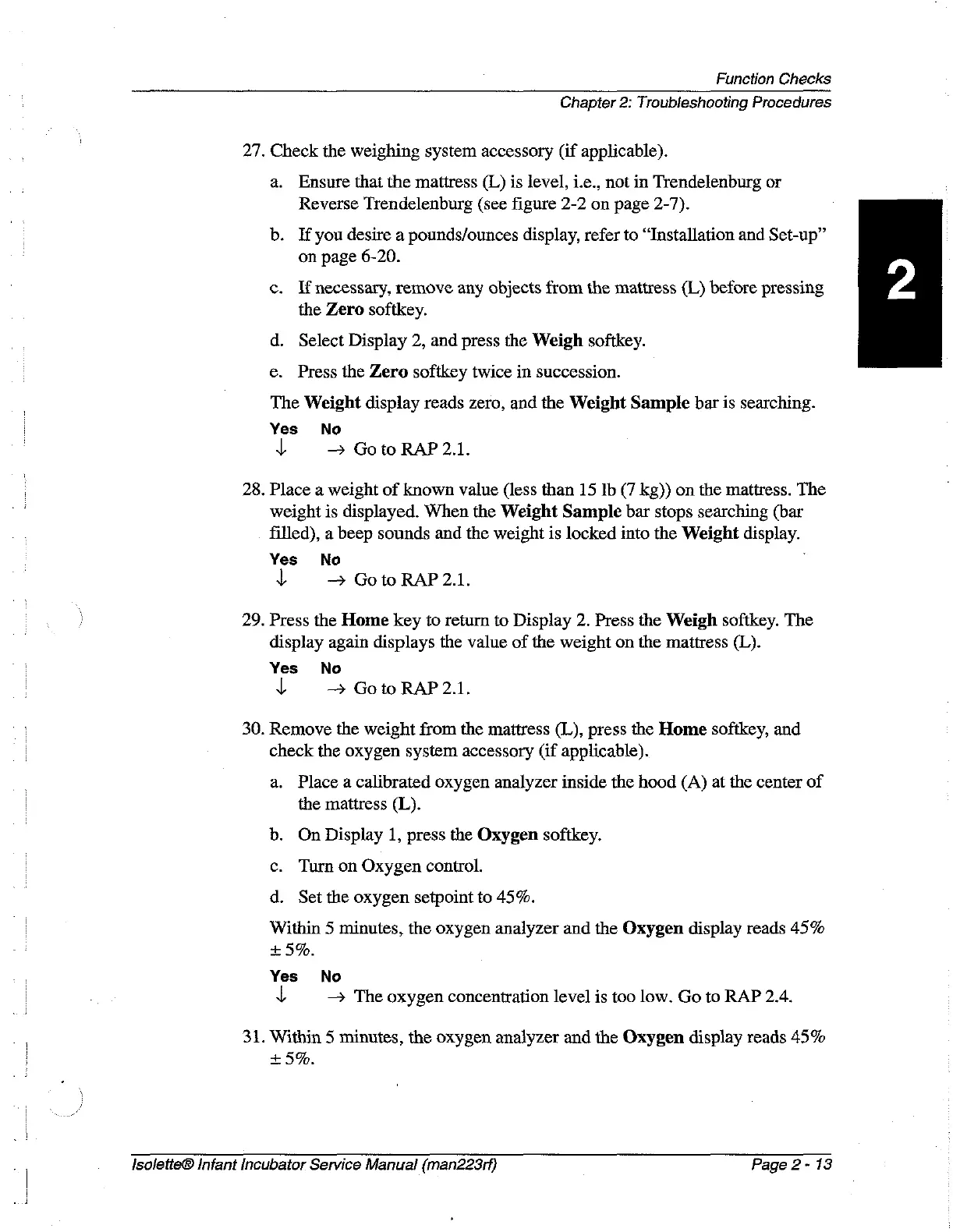

Function Checks
Chapter 2: Troubleshooting Procedures
27. Check the weighing system accessory (if applicable).
a. Ensure that the mattress (L) is level, i.e., not in Trendelenburg or
Reverse Trendelenburg (see figure 2-2 on page 2-7).
b. If you desire a pounds/ounces display, refer to “Installation and Set-up”
on page 6-20.
c. If necessary, remove any objects from the mattress (L) before pressing
the Zero softkey.
d. Select Display 2, and press the Weigh softkey.
e. Press the Zero softkey twice in succession.
The Weight display reads zero, and the Weight Sample bar is searching.
Yes No
+ — Goto RAP 2.1.
28. Place a weight of known value (less than 15 Ib (7 kg)) on the mattress. The
weight is displayed. When the Weight Sample bar stops searching (bar
filled), a beep sounds and the weight is locked into the Weight display.
Yes No
y ー Go to RAP 2.1.
29. Press the Home key to return to Display 2. Press the Weigh softkey. The
display again displays the value of the weight on the mattress (L).
Yes No
y — Goto RAP 2.1.
30. Remove the weight from the mattress (L), press the Home softkey, and
check the oxygen system accessory (if applicable).
a. Place a calibrated oxygen analyzer inside the hood (A) at the center of
the mattress (L).
b. On Display 1, press the Oxygen softkey.
c. Turn on Oxygen control.
d. Set the oxygen setpoint to 45%.
Within 5 minutes, the oxygen analyzer and the Oxygen display reads 45%
+5%.
Yes No
y — The oxygen concentration level is too low. Go to RAP 2.4.
31. Within 5 minutes, the oxygen analyzer and the Oxygen display reads 45%
+ 5%.
Isolette® Infant Incubator Service Manual (man223rf) Page 2 - 13
