3.8 Using D/A Output
90
Required item:
Connect wires to the terminals for the measured value you wish to output. Connect the instrument’s GND ter-
minal to the GND terminal of the data logger, recorder, or other output device.

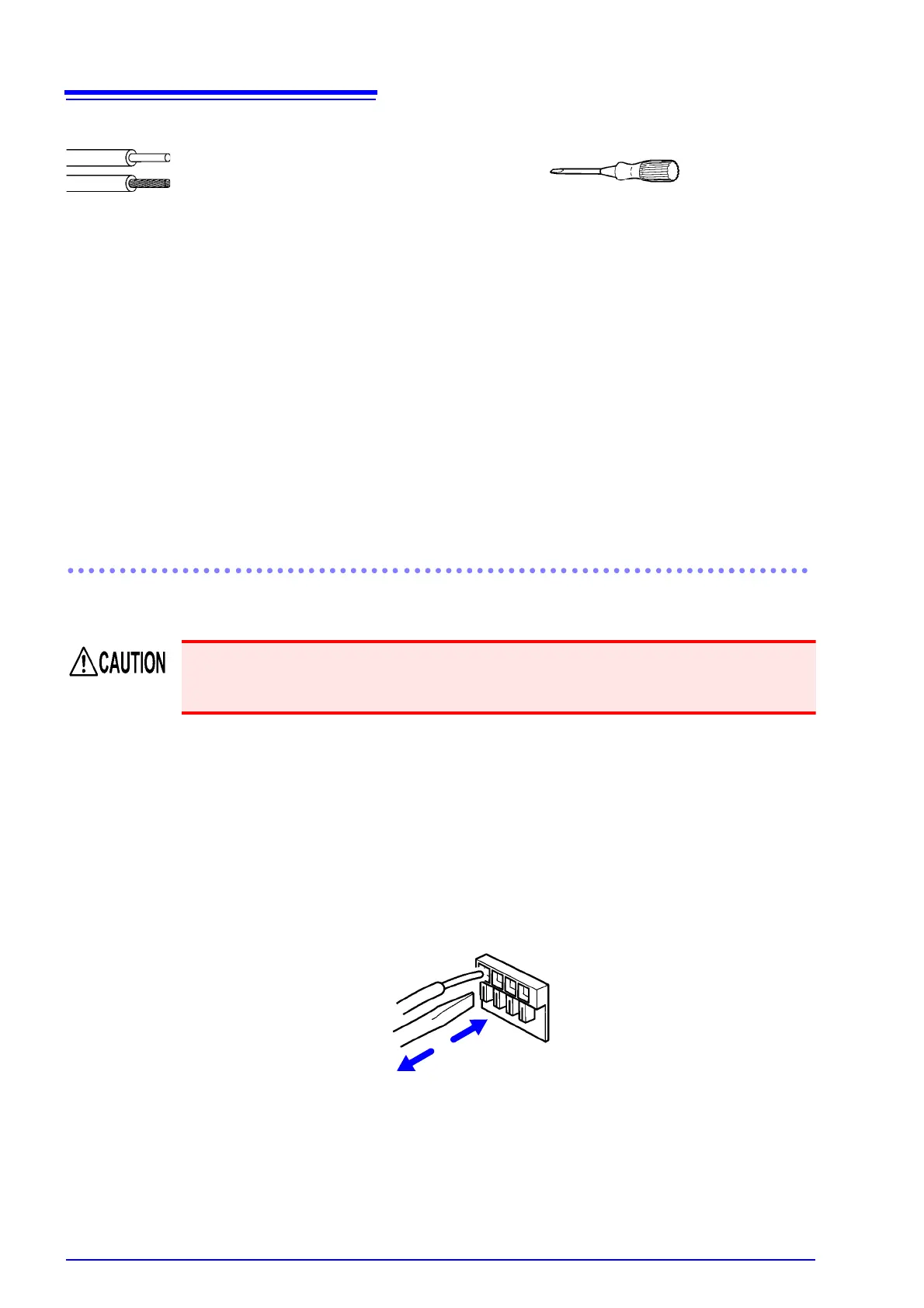

Connecting wires to D/A output terminals
Before connecting wires to the terminals, see Before Connecting (p.7).
Connect wires to the terminals for the measured value you wish to output. Connect the instrument’s GND ter-
minal to the GND terminal of the data logger, recorder, or other output device.
Wires
Recommended cablesSingle strand diameter:φ 0.65 mm (AWG22)
Multi-strand: 0.32 mm
2
(AWG22)
Strand diameter: At least φ0.12 mm or greater
Usable cables Single strand diameter: φ0.32 mm to φ0.65 mm (AWG28 to AWG22)
Multi-strand: 0.08 mm
2
to 0.32 mm
2
(AWG28 to AWG22)
Strand diameter: At least φ0.12 mm or greater
Standard insulation stripping length : 9 mm
Flathead screwdriver
Shaft diameter:φ 3 mm
tip width: 2.6 mm
• To avoid damaging the instrument, do not input voltage to the output terminals or short the
terminals.
• To avoid an electrical accident, use the specified wire type.
1
Press down on the terminal button using a tool, such as a flat head screwdriver.
2
While the button is depressed, insert the wire into the electric wire connection hole.
3
4
After connecting the wires, voltage output will be generated when power is connected
to the measurement line.
3
2
1
Release the button.
The electric wire is locked in place.
To remove the wire:
Hold the button while pulling the wire out.
