Saving Measured Data
Display screen [SYSTEM] > [DATA SAVE]
11
1

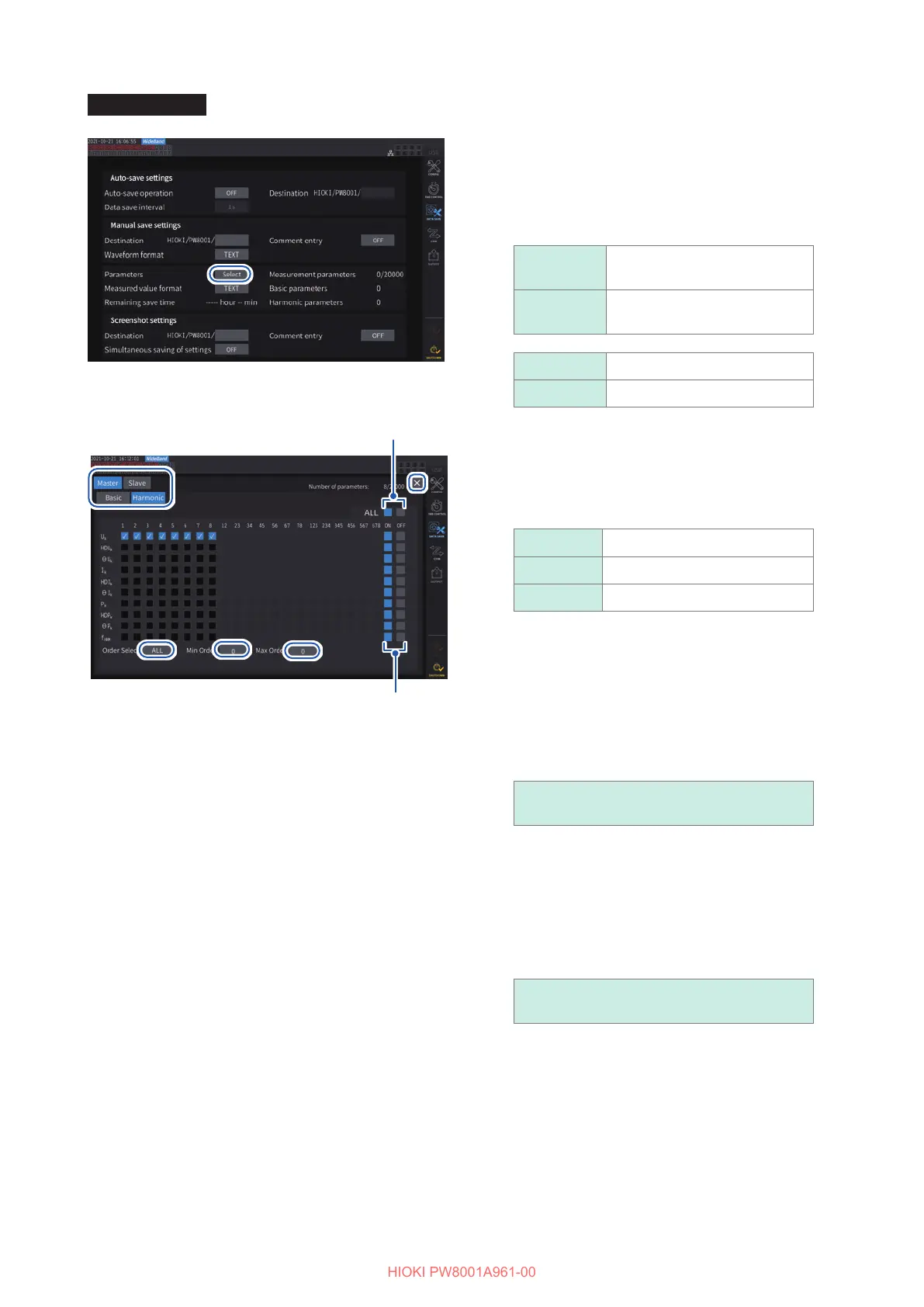

Tap the [Parameters] box to open the
settings window.
2
Tap the parameters to be saved to
select check boxes [].
Master Basic measurement items for
the master unit
Slave Basic measurement items for
the subordinate units
Basic Basic measurement items
Harmonic Harmonic measurement items
3
(When [Harmonic] is selected)
Tap the [Order Select] box, then select
the rectier from the list.
ALL All orders
ODD Odd-numbered orders
EVEN Even-numbered orders
4
Tap the [Min Order] box, and then set
the lowest order using the Y rotary
knob.
Lit up in green: in 1 increments
Lit up in red: in 10 increments
See “Changing values with rotary knobs”
(p. 21).
0 to 500 (Values higher than the highest order
are unsettable.)
5
Tap the [Max Order] box, and then set
the highest order using the Y rotary
knob.
Lit up in green: in 1 increments
Lit up in red: in 10 increments
0 to 500 (Values lower than the lowest order
are unsettable.)
6
Tap [
×
] to close the setting window.
22
33
44 55
Tap here to switch between on and o󰀨 for all items.
Tap here to switch between on and
o󰀨 for all items in that row.
66
