21

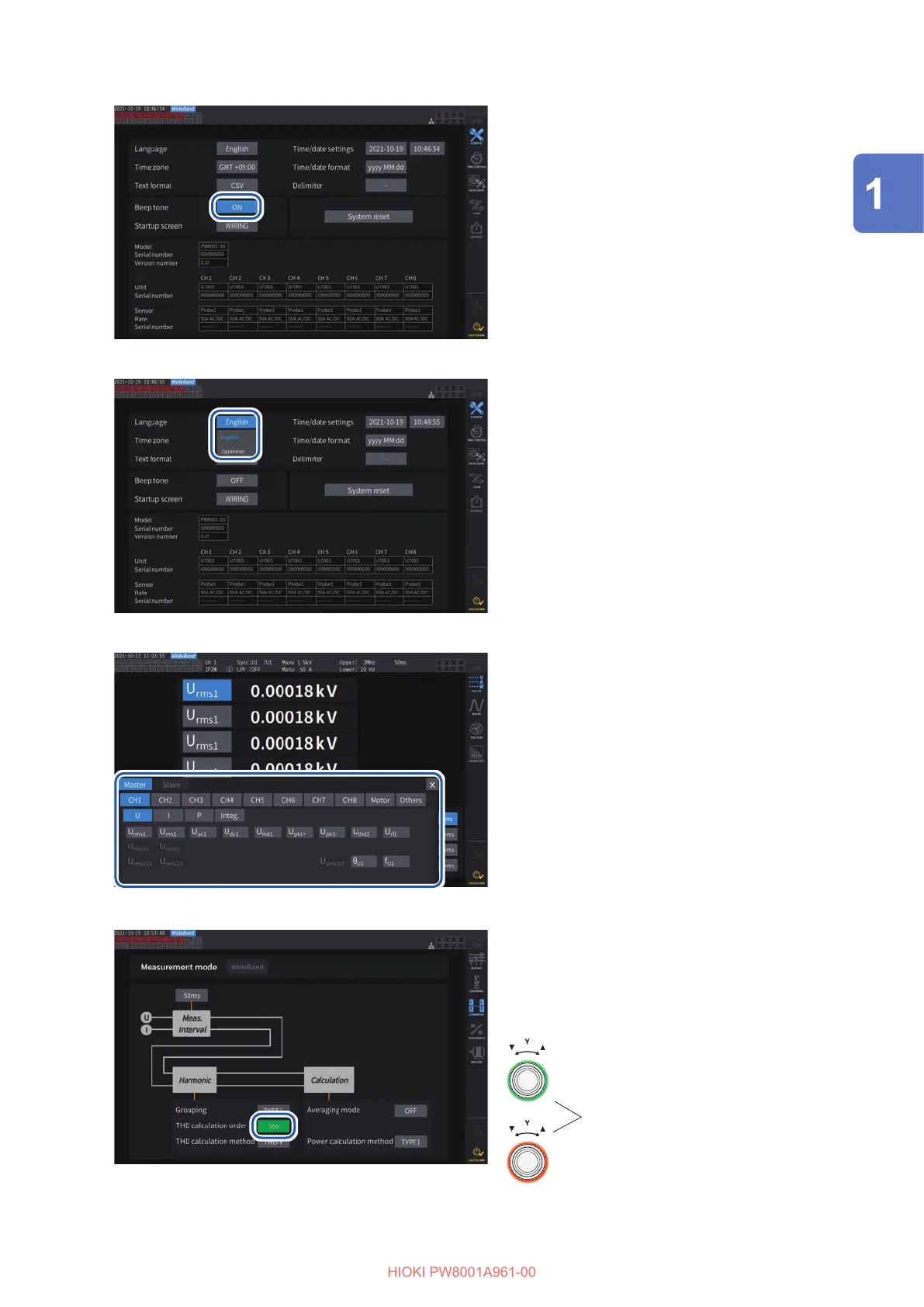

Basic Operation (Screen Display and Layout)
Switching between [ON] and [OFF]
Tap the button to toggle between on and o.
Selecting items
Tap an option to select it.
Tapping outside the list of options will close the list
without changing the setting.
Window
While the window is being displayed, the control
area and touchscreen keys outside the window may
be temporarily disabled.
Once you have nished conguring the settings as
desired, tap [
×
] to close the window.
There are three types of window:
• Parameter selection window
• Keyboard window (p. 22)
• Numeric keypad window (p. 22)
Changing values with rotary knobs
Tap the screen. The edge of one of the instrument’s
rotary knobs lights up. You can turn that knob to
change the value or manipulate the waveform.
Tapping the screen can conrm the value you set.
Lit up in green: in 1 increments
Lit up in red: in 10 increments
Press the knob to switch.
