Hirschmann SPIDER PL - Device View; Front View

18
Installation SPIDER PL
Release 08 09/2018
1.3 Device view
1.3.1 Front view

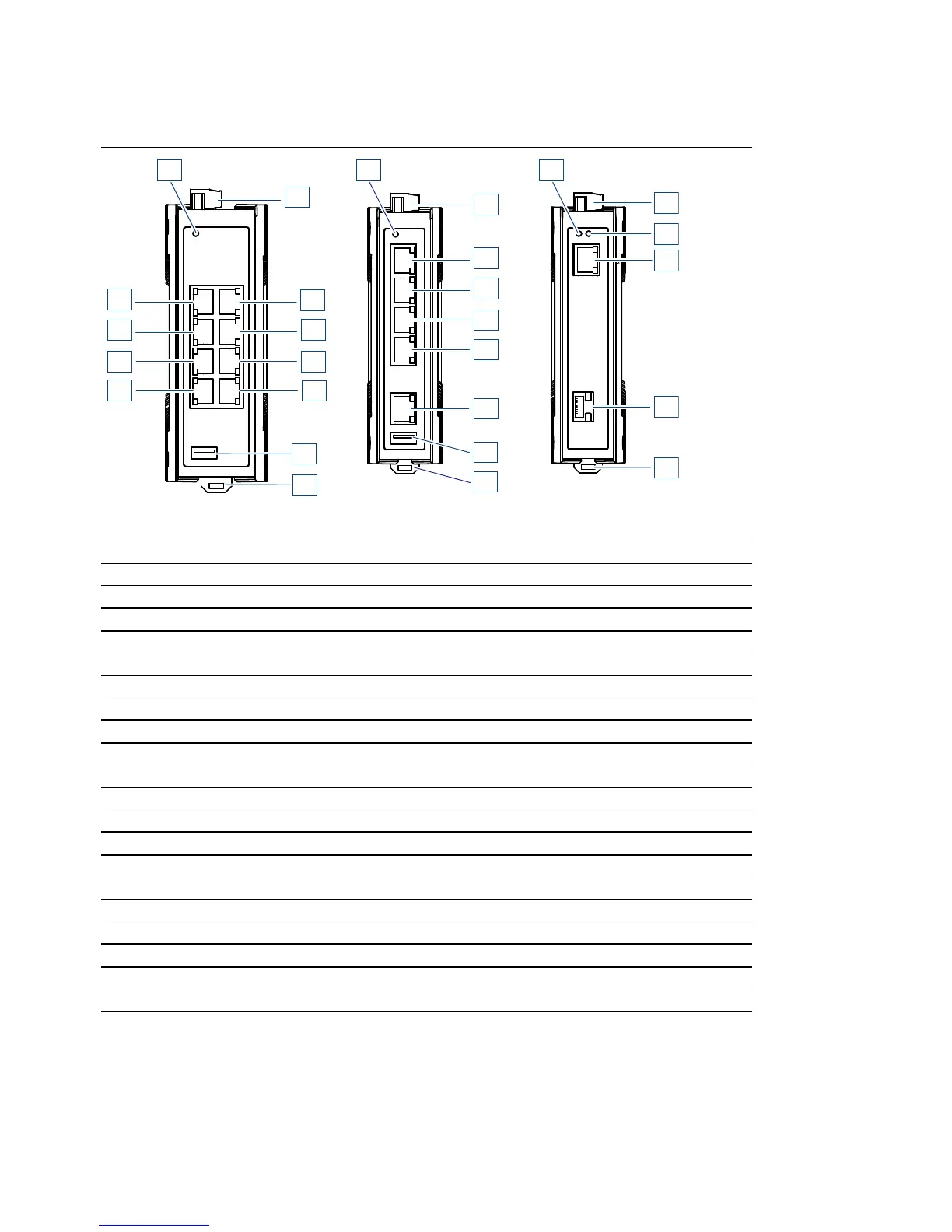

Front view using example of the device variants SPIDER PL-40...
SPIDER PL 40-08T1...
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3 ... 6 4 × RJ45 socket for 10/100/1000 Mbit/s twisted Pair connections
7USB interface
8 Rail lock slide for DIN rail mounting
9 ... 12 4 × RJ45 socket for 10/100/1000 Mbit/s twisted Pair connections
SPIDER PL-40-05T1...
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3 ... 7 5 × RJ45 socket for 10/100/1000 Mbit/s twisted Pair connections
8USB interface
9 Rail lock slide for DIN rail mounting
SPIDER PL-40-01T1...
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3 LED display elements for port status
4 RJ45 socket for 10/100/1000 Mbit/s twisted Pair connections
5 SFP slot for 100/1000 Mbit/s F/O connections
6 Rail lock slide for DIN rail mounting
2
3
4
5
6
2
3
4
5
6
7
8
1
9
SPIDER PL-40-05T1...
SPIDER PL-40-01T1...
1
7
2
31
1
1
2
2
3
3
4
4
5
5
6
78
4
5
6
8
SPIDER PL-40-08T1...
12
11
10
9
1
