Hirschmann SPIDER PL - Mounting on a Flat Surface

30
Installation SPIDER PL
Release 08 09/2018
4.2.2 Mounting on a flat surface
Proceed as follows:
 Attach the wall mounting plate to a flat surface of the wall using screws.

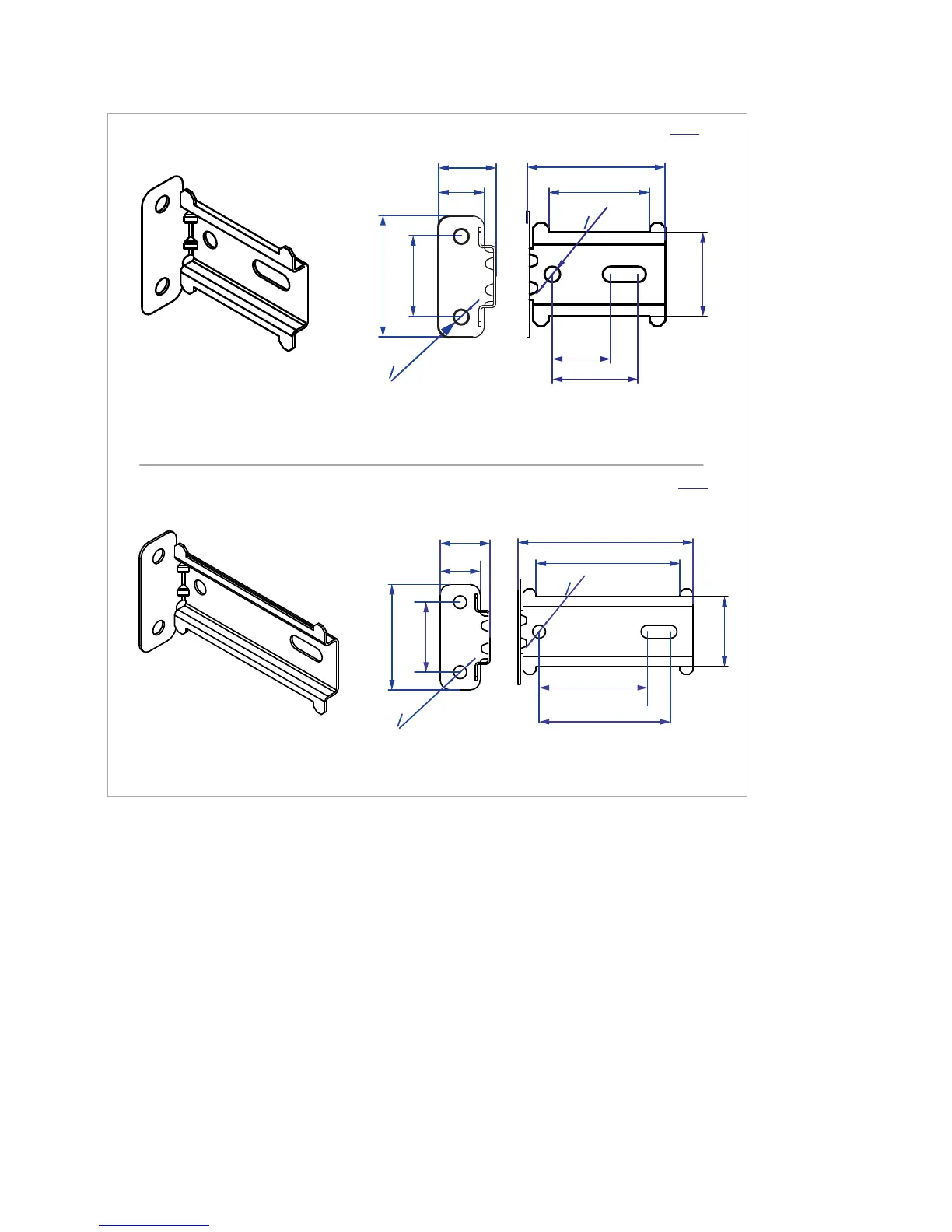

You will find the dimensions necessary for mounting the device in the
illustration.
 Mount the device on the wall mounting plate. Insert the upper snap-in
guide of the device into the rail and press it down against the rail until it
snaps into place.
 Two models of wall mounting plates are available.
See “Accessories” on page 57.
20
0.8
25
1
52,7 2.07
35
1.38
O
6,5
0.26
42
1.65
57,5
2.26
35,75
1.41
24,25
0.95
O
6,5
0
.26
35
1.38
mm
inch
20
0.8
25
1
52,7
2.07
35
1.38
O
6,5
0.26
72
2.83
87,5
3.44
65,75
2.59
54,25
2.14
O
6,5
0.26
35
1.38
mm
inch
