Installation SPIDER PL
Release 08 09/2018
29
 Device variants SPIDER PL-20-16T1... , SPIDER PL-20-
24T1... , SPIDER PL-30-24T1...
The device is for mounting on a 35 mm DIN rail in accordance with
DIN EN 60715.
Proceed as follows:

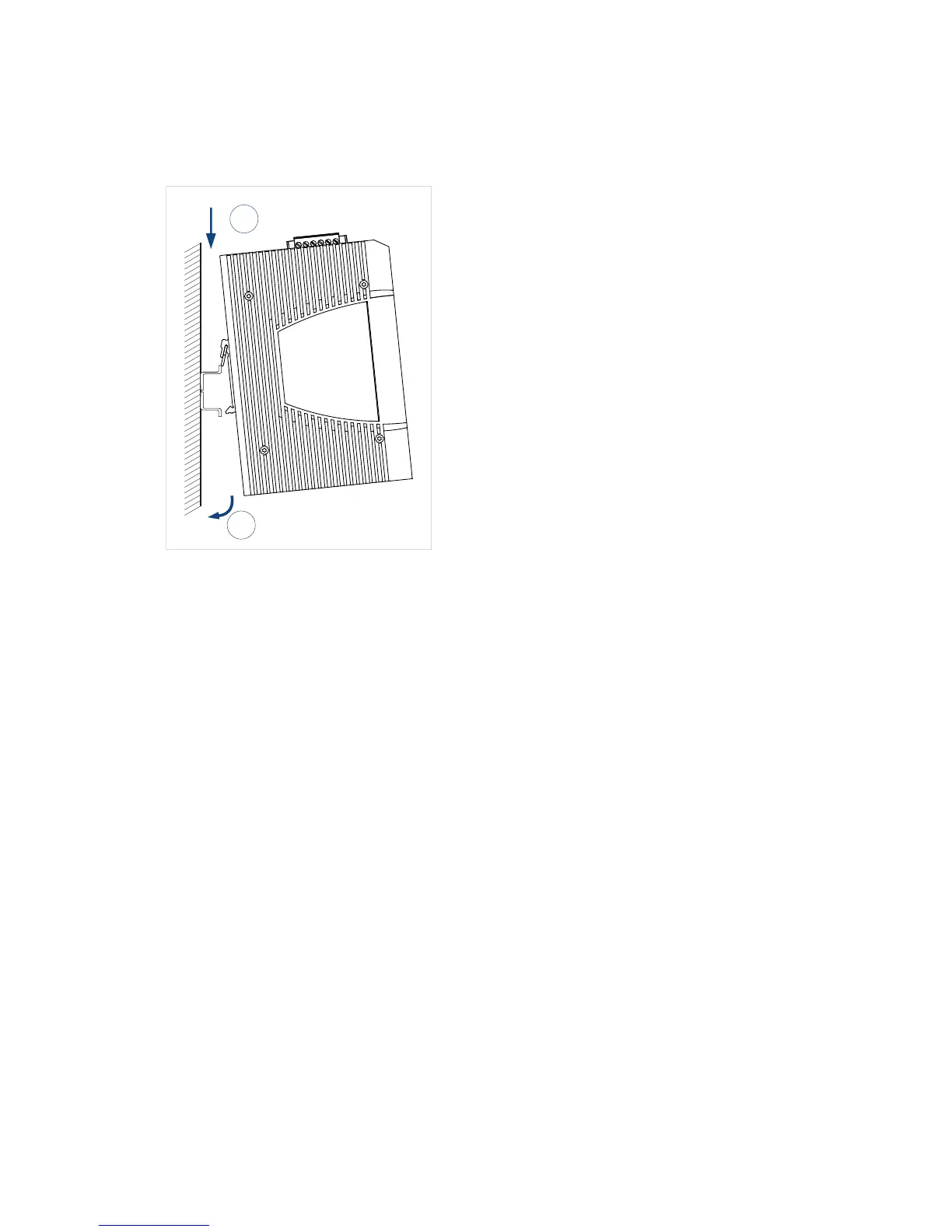

 Slide the upper snap-in guide of the device into the DIN rail.
 Press the media module downwards onto the clip-in bar.
 Snap in the device.
2
1
